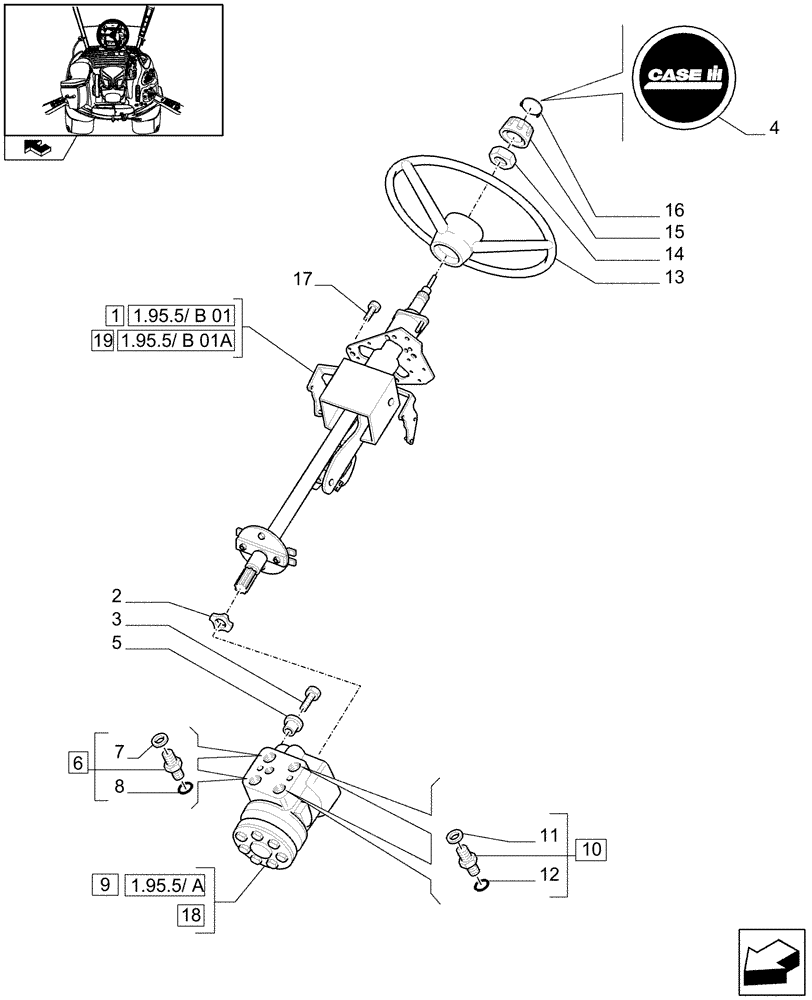

Запчасти Case IH PUMA 195 (1.95.5[01]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN (10) - OPERATORS PLATFORM/CAB

1

87709993

STEERING COLUMN

Tilt and Telescopic, ASSY, Serial Range: -C6465

1шт.

1

84229207

STEERING COLUMN

Tilt and Telescopic, ASSY, Serial Range: D6465-C6553

1шт.

1

84255779

STEERING COLUMN,Tilting, Telescoping

ASSY, Serial Range: D6553-C9023

1шт.

2

81873344

RUBBER INSULATOR

1шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

4

86401707

EMBLEM

1шт.

5

82009429

ISOLATOR

4шт.

6

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

2шт.

7

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

8

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

47136607

HYDRAULIC STEERING

, Serial Range: -C6408

1шт.

10

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

2шт.

11

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

12

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

9821708

STEERING WHEEL

1шт.

14

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

15

87302160

KNOB

1шт.

16

87302798

CAP,54mm OD, Black

1шт.

17

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

1шт.

18

84165701

HYDRAULIC STEERING

, Start Serial: D6408

1шт.

84165701R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210 SERIAL NUMBER Z*BE 40001 --> 50000 AND 60001 --> … all Start Serial: D6408 (1/09-)

1шт.

84165701C

CORE-VALVE HYD

Return Number

1шт.

19

47383940

STEERING COLUMN,Tilting, Telescoping

ASSY, Start Serial: D9023

1шт.
