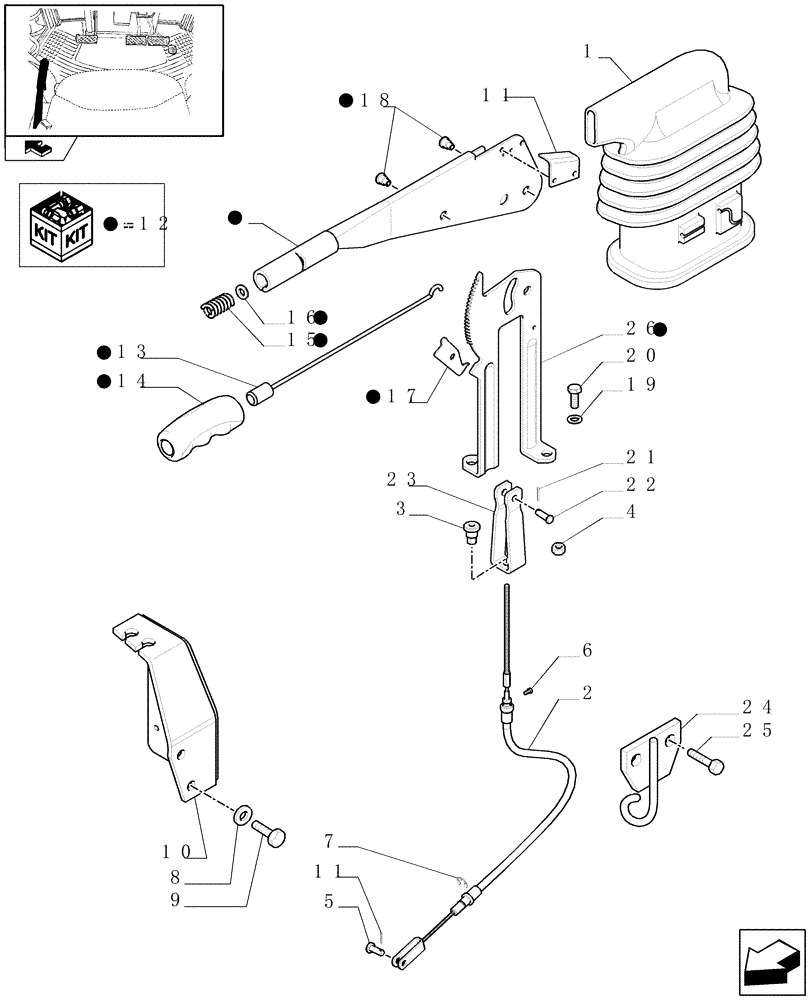

Запчасти Case IH PUMA 195 (1.95.1/01) - (VAR.127-334) ELECTRONIC PARK LOCK - HANDBRAKE CONTROL (10) - OPERATORS PLATFORM/CAB

1

84213451

BOOT

1шт.

2

84140203

BOWDEN CONTROL

1шт.

3

82000974

NUT,Adj., M8, 1.25 Pitch, 23.00mm High, Zinc

1шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

5

10033411

PIN,10mm OD x 27mm L

1шт.

6

87305546

SCREW,Phillips Drive, Oval HD, M5 x 10mm, Cl 4.8

1шт.

7

11087374

CIRCLIP,M13

1шт.

8

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

9

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

10

87689273

BRACKET

1шт.

11

84199077

PROTECTION PLATE

1шт.

12

84174329

BRAKE LEVER

ASSY

1шт.

13

81870377

BUTTON

1шт.

14

81866090

HANDLE GRIP

1шт.

15

81866091

SPRING,Type, 12.2mm OD x 40mm L

1шт.

16

81866092

WASHER,5.5mm ID x 13.4mm OD x 1.2mm Thk

1шт.

17

82863025

PAWL,4.5mm Thk

1шт.

18

82000812

PIN,7.8mm OD x 7.4mm L

2шт.

19

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

20

11106224

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

21

81813880

COTTER PIN,3/32" x 3/4"

1шт.

22

83902558

PIN,3/8" x 1.312"

1шт.

23

84140224

CLEVIS

1шт.

24

82034369

SLIDE GUIDE

1шт.

With CAB Suspension, VAR.334

1шт.

25

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

With CAB Suspension, VAR.334

1шт.

26

84174325

SUPPORT

1шт.
