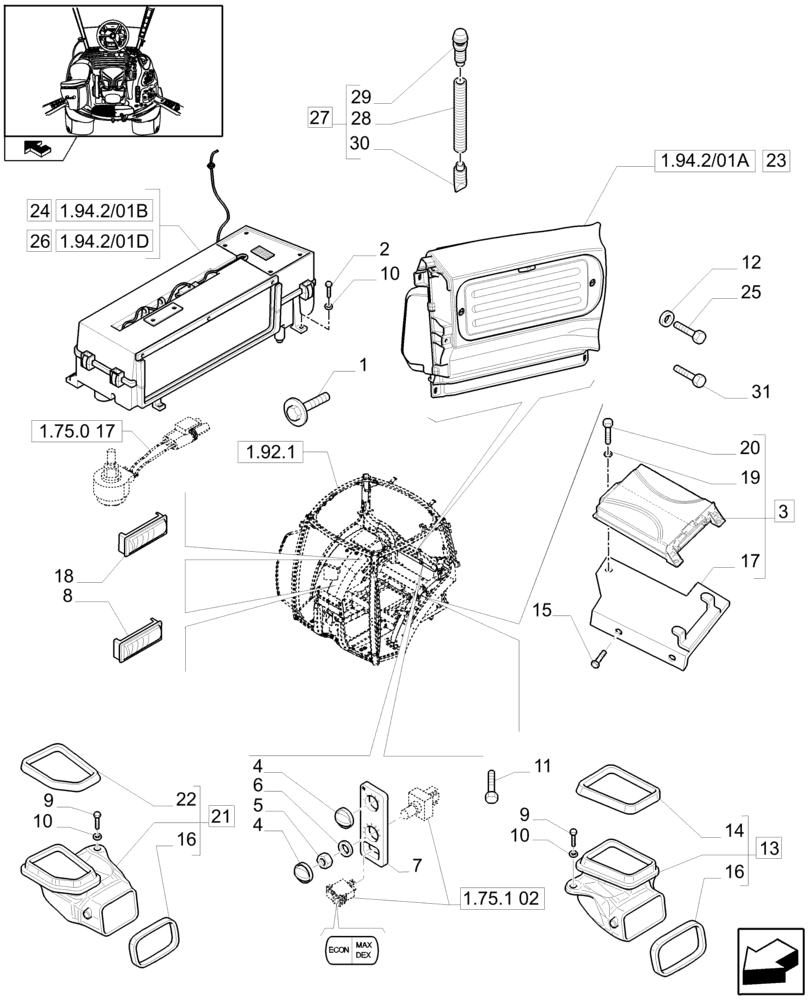

Запчасти Case IH PUMA 195 (1.94.2/01) - (VAR.098) AUTOMATIC CLIMATE CONTROL - VENTILATION DUCTS (10) - OPERATORS PLATFORM/CAB

1

87581911

FLANGE BOLT,Hex, M6 x 25mm

M6 x 20

2шт.

2

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

3

84214115

ECU

1шт.

4

87699601

KNOB

2шт.

5

83905114

NUT

2шт.

6

81829134

LOCK WASHER,0.464" ID x 0.76" OD x 0.04" Thk

2шт.

7

82037672

DECAL

1шт.

8

87568777

VENT

1шт.

9

87578958

SELF-TAP SCREW,M6.3 x 1.8 x 25mm

M6.3 x 25

2шт.

10

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6.15 x 18 x 2MM

6шт.

11

15663301

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 19mm

2шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

13

87390278

DUCT

LH

1шт.

14

87523726

SEAL

1шт.

15

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

16

87523573

SEAL

2шт.

17

87540518

SUPPORT

1шт.

18

87568776

DIFFUSER

Wheat

3шт.

19

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

1шт.

20

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

1шт.

21

87518106

DUCT

RH

1шт.

22

87523583

SEAL

1шт.

23

87651397

BLOWER

ASSY

1шт.

24

87728085

MODULE

, Serial Range: -C6481

1шт.

25

83962783

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 4.8, Full Thd

6 x 20, Serial Range: -C7254

2шт.

26

84233168

AIR CONDITIONER

, Start Serial: D6481

1шт.

27

84232466

TUBE

A/C HOSE ASSY, Start Serial: D6481

2шт.

28

84232468

HOSE,25.40 mm ID x 800.00 mm

A/C HOSE, Start Serial: D6481

2шт.

29

84231998

DRAIN

, Start Serial: D6481

2шт.

30

84232000

CHECK VALVE

, Start Serial: D6481

2шт.

31

13276617

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 5.8, Full Thd

, Start Serial: D7254

2шт.
