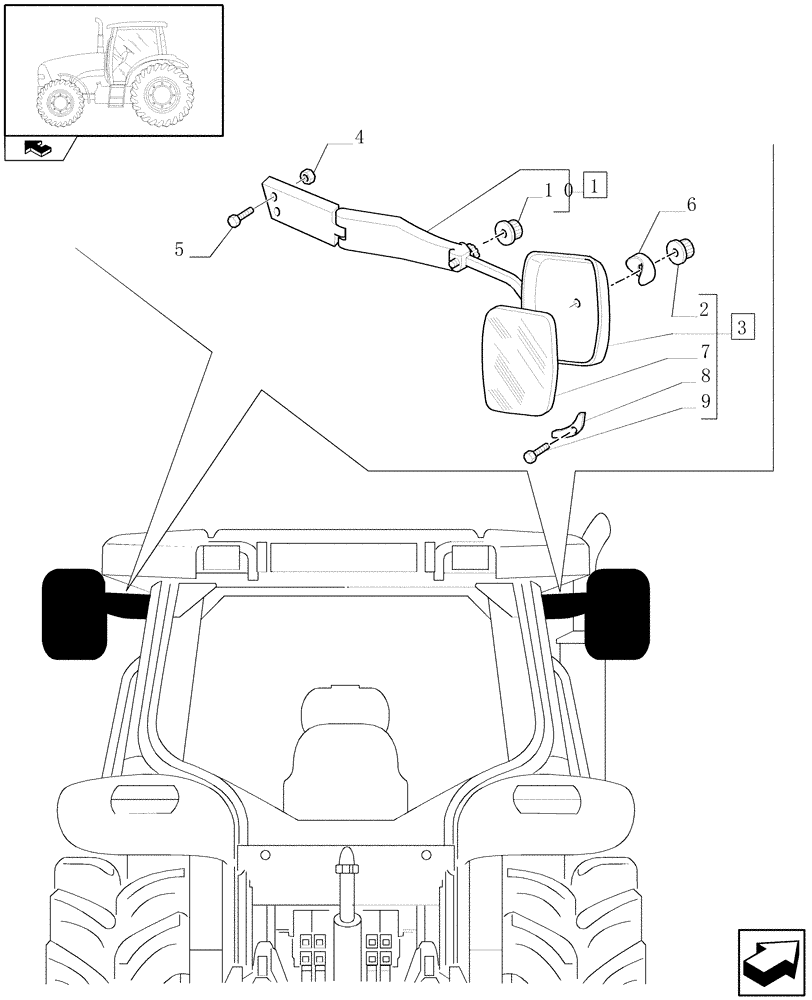

Запчасти Case IH PUMA 195 (1.93.6/04) - (VAR. 879) 2 X SHATTERPROOF TELESCOPIC EXTERNAL REAR VIEW MIRROR (10) - OPERATORS PLATFORM/CAB

1

87314382

ARM

RH, Serial Range: -C7119

1шт.

1

87314381

MIRROR ARM

LH

1шт.

1

84398575

MIRROR ARM

RH, Start Serial: D7119

1шт.

2

82016257

KNOB

2шт.

3

87339177

MIRROR ASSY.

2шт.

4

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

5

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

6

82035908

WASHER

2шт.

7

82035218

MIRROR,300mm x 200mm

2шт.

8

87531094

BRACKET

4шт.

9

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

10

87365131

KNOB

2шт.
