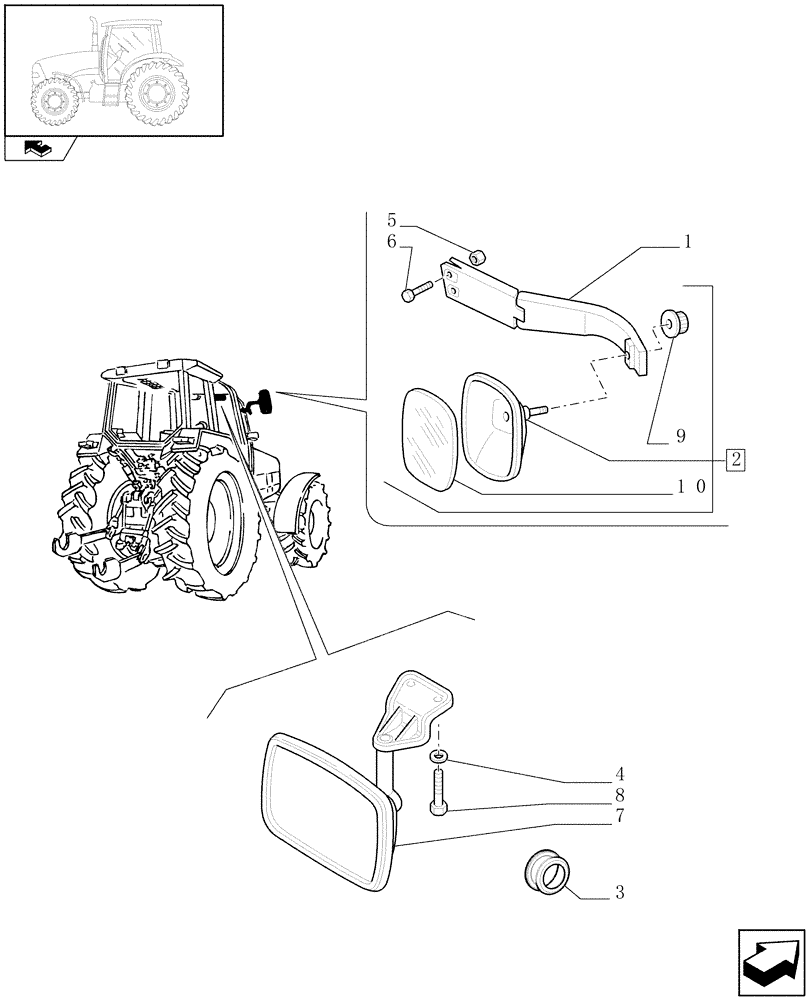

Запчасти Case IH PUMA 195 (1.93.6) - REAR-VIEW MIRRORS (10) - OPERATORS PLATFORM/CAB

1

82032643

MIRROR ARM

RH

1шт.

1

82032644

MIRROR ARM

LH

1шт.

2

82014840

REAR VIEW MIRROR,160mm x 263mm

ASSY

2шт.

3

82039492

GROMMET,6mm ID x 20mm OD, Rubber

2шт.

4

14496407

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

5

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

6

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

7

87556793

MIRROR

1шт.

8

84187812

SCREW,Torx, Pan HD, M6 x 16mm, Cl 4.8

2шт.

9

82016257

KNOB

2шт.

10

82015244

REPLACEMENT MIRROR,152.199mm x 253mm

2шт.
