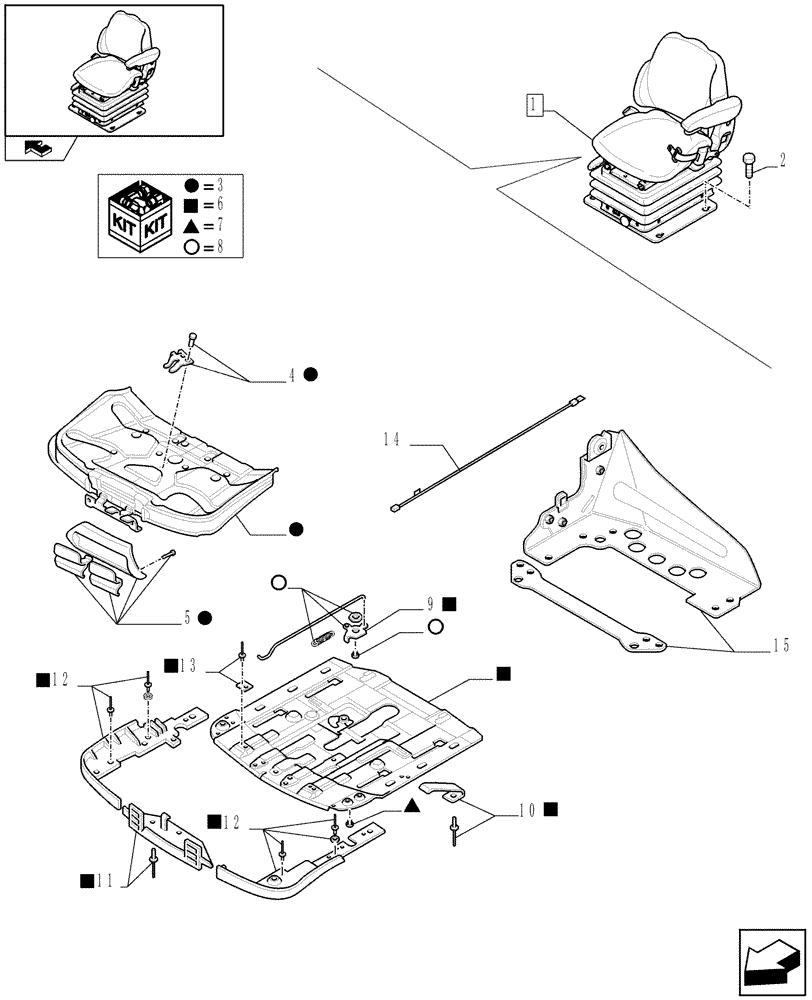

Запчасти Case IH PUMA 195 (1.93.3/ E[03]) - SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

1

84215888

DRIVER SEAT

ASSY

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

84191153

ADJUSTER

1шт.

4

1-34-751-739

FIXING PLATE

1шт.

5

84191160

TRIGGER

1шт.

6

84191167

ADJUSTER

Incl. 7

1шт.

7

84191202

SET OF PARTS

1шт.

8

84191203

CONTROL LEVER

1шт.

9

345775A1

LEVER

1шт.

10

84191175

SEAT PLATE

1шт.

11

1-34-751-728

COVER

1шт.

12

1-34-751-727

COVER

1шт.

13

84191178

SET OF PARTS

Incl. 14

1шт.

14

84191190

WIRE HARNESS

1шт.

15

84191195

SUPPORT

1шт.
