Запчасти Case IH PUMA 195 (1.93.3/ C[03]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

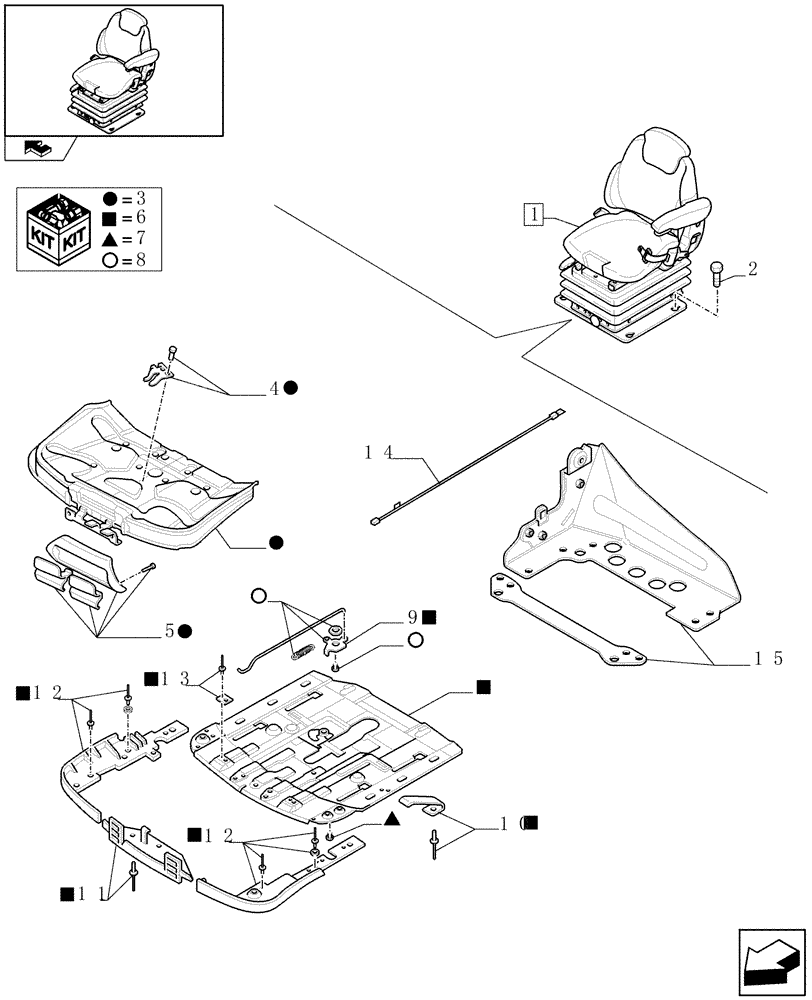

![Схема запчастей Case IH PUMA 195 - (1.93.3/ C[03]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB](https://partsell.ru/storage/images/caseih/528003.png)
1
7
8
10
13
6
8
12
7
3
15
6
11
8
3
6
3
3
14
home
6
5
6
12
4
3
9
6
8
2
6
6
6
7
№
Артикул
Название
Примечание
Количество
1
87486990
SEAT
ASSY
1шт.
2
84187826
FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd
4шт.
3
84191153
ADJUSTER
1шт.
4
1-34-751-739
FIXING PLATE
1шт.
5
84191160
TRIGGER
1шт.
6
84191167
ADJUSTER
Incl. 7
1шт.
7
84191202
SET OF PARTS
1шт.
8
84191203
CONTROL LEVER
1шт.
9
345775A1
LEVER
1шт.
10
84191175
SEAT PLATE
1шт.
11
1-34-751-728
COVER
1шт.
12
1-34-751-727
COVER
1шт.
13
84191178
SET OF PARTS
1шт.
14
84191190
WIRE HARNESS
1шт.
15
84191195
SUPPORT
1шт.
Выбрано товаров: 15
