Запчасти Case IH PUMA 195 (1.93.3/ C[01]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

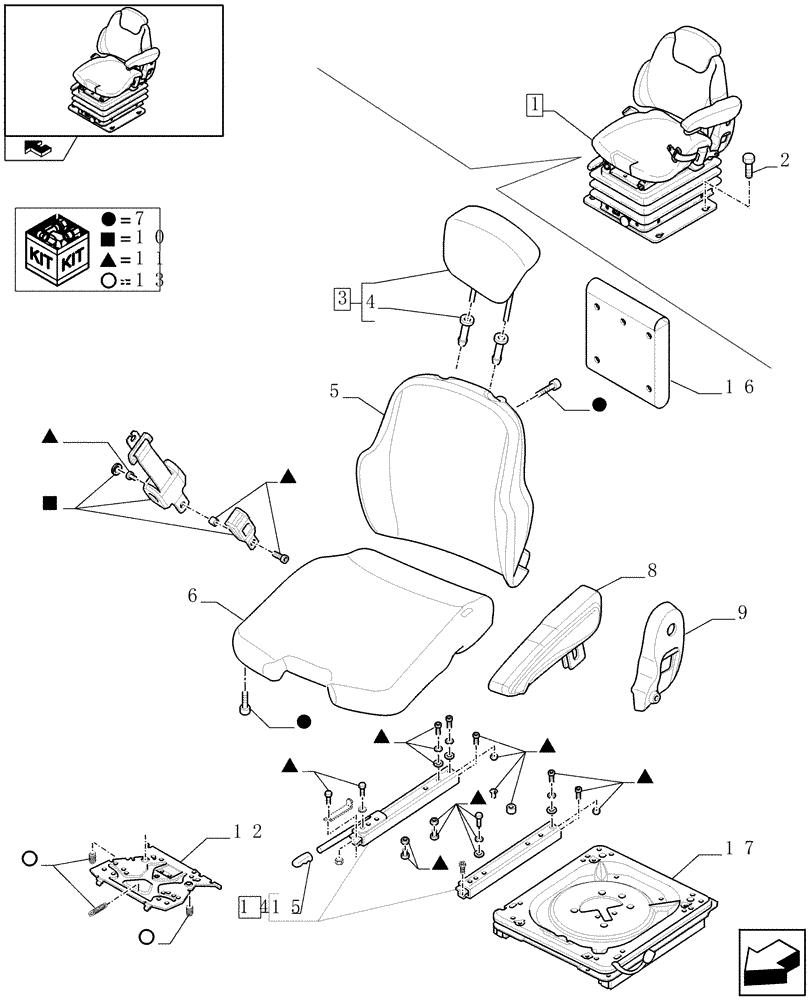

Схема запчастей Case IH PUMA 195 - (1.93.3/ C[01]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
6
11
15
11
1
8
11
9
3
16
10
10
13
7
11
11
4
11
2
11
13
11
14
11
7
12
17
7
home
11
5
13
10
13
7

Артикул

Название

Примечание

Количество

1

87486990

SEAT

ASSY

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

84191100

SEAT HEADREST

1шт.

4

84191112

GUIDE

1шт.

5

84191204

BACKREST

1шт.

6

84191205

SEAT CUSHION

Incl. 7

1шт.

7

84191200

SET OF PARTS

Incl. 7

1шт.

8

82034988

ARMREST

1шт.

9

87331931

COVER

1шт.

10

84191197

SEAT BELT

1шт.

11

84191194

MOUNTING PARTS

Mounting Parts for P/N 10, 14, 17

1шт.

12

84191141

PLATE

Incl. 13

1шт.

13

84191201

SET OF PARTS

1шт.

14

84191191

REPAIR KIT

1шт.

15

9971715

HANDLE

1шт.

16

47124555

BRIEF CASE

1шт.

17

84191192

SEAT SUPPORT

1шт.

Выбрано товаров: 17
