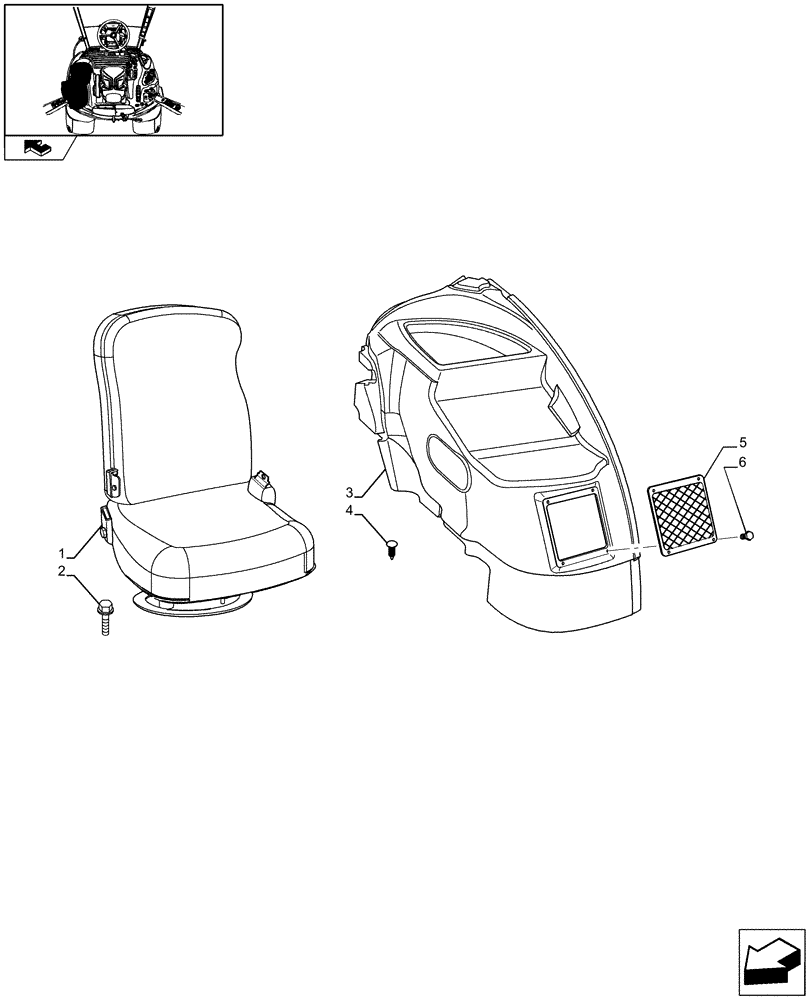

Запчасти Case IH PUMA 195 (1.93.3/02[01A]) - (VAR.066/1-685), PASSENGER SEAT - D9014 (10) - OPERATORS PLATFORM/CAB

1

47371486

INSTRUCTIONAL SEAT

1шт.

With Left Side Instructional Seat, VAR 685

1шт.

1

84600242

INSTRUCTIONAL SEAT

1шт.

With Left Side Instructional Seat, VAR 066/1

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

M8 x 20, 8.8, Back Cushion

6шт.

3

47389188

SOFT TRIM

1шт.

4

87539768

ANCHOR,Button Hd, 4.70 mm x 11.00 mm, Nylon

2шт.

5

84600304

NET

LH

1шт.

With Left Side Instructional Seat, VAR 685

1шт.

5

47476163

NET

LH

1шт.

With Left Side Instructional Seat, VAR 066/1

1шт.

6

13271817

SCREW,Pozidriv Pan Hd, M4 x 8mm, Cl 5.8, Full Thd

4шт.
