Запчасти Case IH PUMA 195 (1.93.3/01C[02]) - DELUXE SEAT WITH REELING SEAT BELT, HEATED CUSHION AND SEMI ACTIVE SUSPENSION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

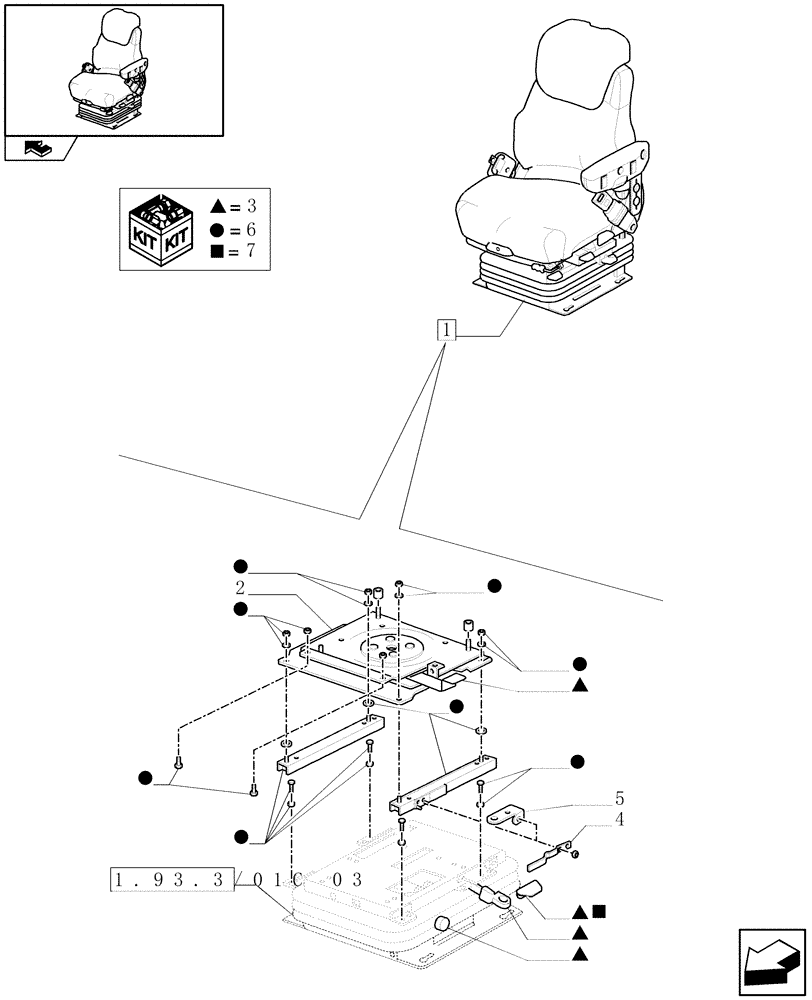

Схема запчастей Case IH PUMA 195 - (1.93.3/01C[02]) - DELUXE SEAT WITH REELING SEAT BELT, HEATED CUSHION AND SEMI ACTIVE SUSPENSION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
6
6
3
6
6
7
3
6
3
home
6
7
1.93.3/01c 03
3
6
6
3
6
1
7
2
5
3
4
6

Артикул

Название

Примечание

Количество

1

87486992

SEAT

1шт.

For Electrohydraulic Remotes Models only

1шт.

1

84171036

DRIVER SEAT

1шт.

For Mechanical Remotes Models only

1шт.

2

84155804

PIVOT PLATE

Swivel

1шт.

For Electrohydraulic Remotes Models only

1шт.

2

84155770

PIVOT PLATE

Swivel

1шт.

For Mechanical Remotes Models only

1шт.

3

82020839

KIT

Knobs

1шт.

4

82020809

SERVICE KIT

Slide Lever

1шт.

5

82020923

BRACKET

Lever Support

1шт.

6

82020814

SERVICE KIT

Slide

1шт.

7

82020839

KIT

Knobs

1шт.

Выбрано товаров: 13
