Запчасти Case IH PUMA 195 (1.93.3/01A[03]) - SEAT - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

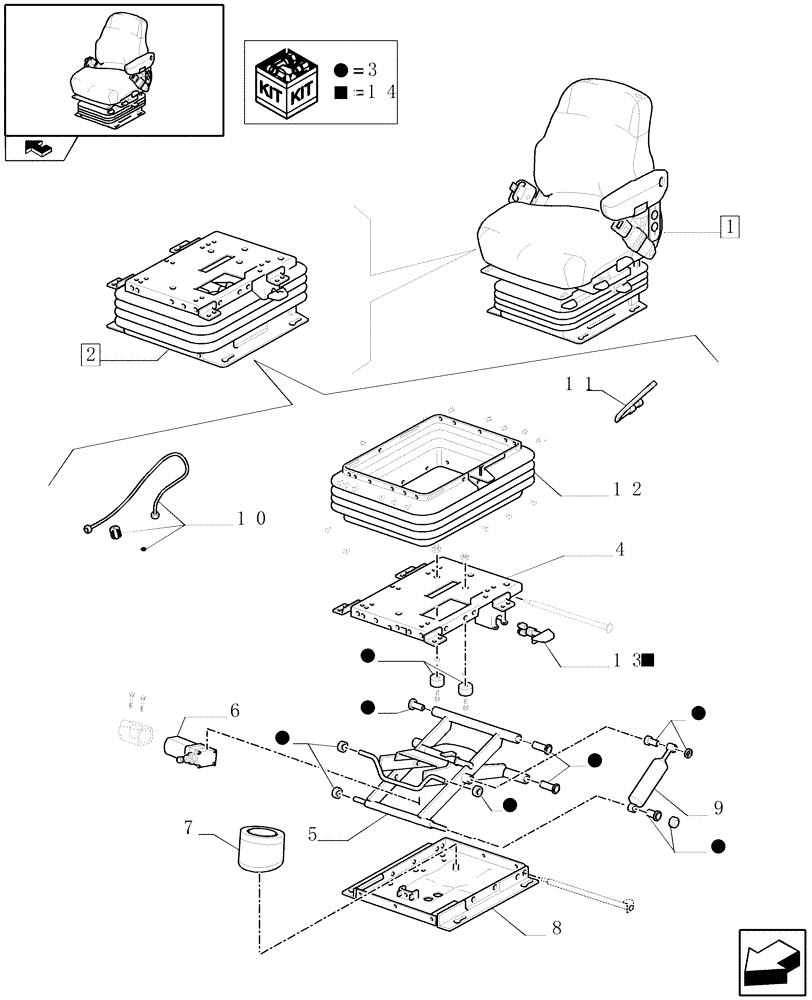

Схема запчастей Case IH PUMA 195 - (1.93.3/01A[03]) - SEAT - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
7
14
5
12
14
3
3
3
1
3
3
14
3
home
6
13
8
4
6
3
11
2
9
10
3

Артикул

Название

Примечание

Количество

1

84155794

SEAT

1шт.

For Electrohydraulic Remotes Models only

1шт.

1

84171085

DRIVER SEAT

1шт.

For Mechanical Remotes Models only

1шт.

2

87529812

SUSPENSION

Suspension

1шт.

3

82020822

KIT

Bumper and Roller

1шт.

4

82020820

KIT

1шт.

5

82020823

KIT

Suspension Scrissors

1шт.

6

87529861

KIT

Compressor

1шт.

7

82020819

KIT

1шт.

8

87529828

HOUSING

1шт.

9

82020824

SERVICE KIT

Suspension Damper

1шт.

10

87529862

SEAT ACCESSORY

Airline & Fittings

1шт.

11

87529791

HARNESS

Harness

1шт.

12

82020818

BELLOWS

Suspension Boot

1шт.

13

82020825

VALVE

1шт.

14

82020812

KIT

Knobs

1шт.

Выбрано товаров: 17
