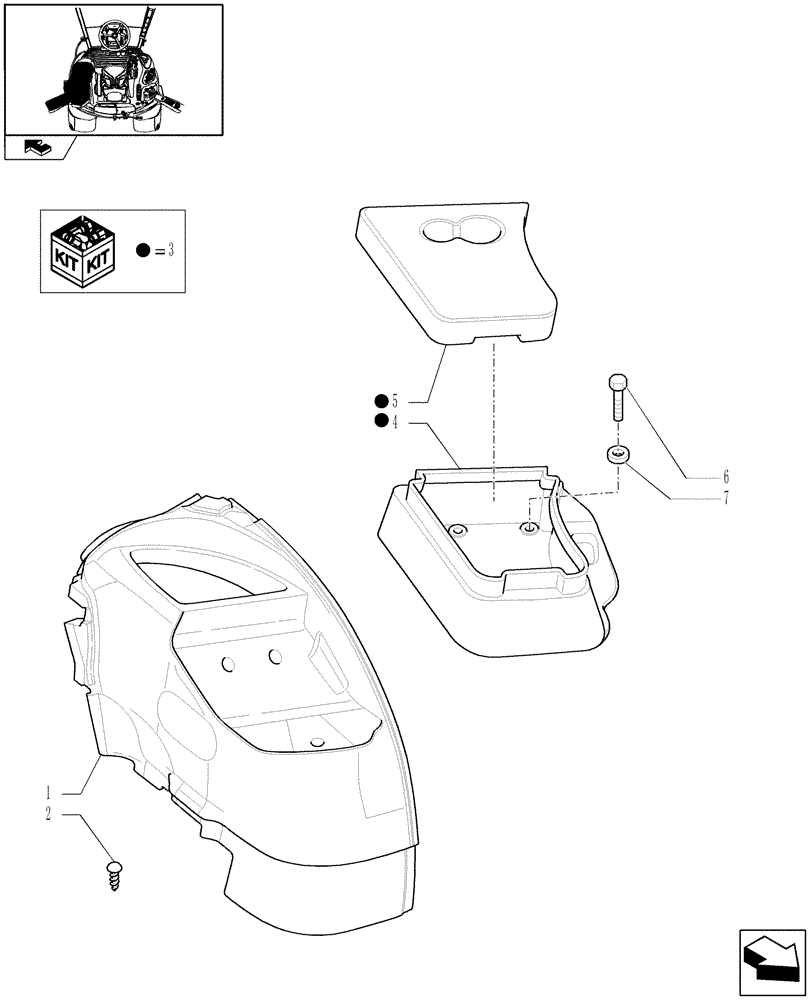

Запчасти Case IH PUMA 195 (1.93.0/04[01]) - (VAR.671) FRONT LEFT CAB STORAGE BOX - C9014 (10) - OPERATORS PLATFORM/CAB

1

87591763

SOFT TRIM

LH, Serial Range: -C6754

1шт.

St. Valentin Production Models only

1шт.

1

84242778

PADDING

LH, Start Serial: D6754

1шт.

Basildon Production Models only

1шт.

1

87591843

PADDING

LH, Serial Range: -C6754

1шт.

Basildon Production Models only

1шт.

1

84242772

SOFT TRIM

LH, Start Serial: D6754

1шт.

St. Valentin Production Models only

1шт.

2

87539768

ANCHOR,Button Hd, 4.70 mm x 11.00 mm, Nylon

Black

2шт.

3

82031621

CAB STORAGE BOX

ASSY

1шт.

4

82031622

SOFT TRIM

1шт.

5

82027464

TOP COVER

1шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.
