Запчасти Case IH PUMA 195 (1.93.0[02C]) - CONTROLS COVER - D6801 (10) - OPERATORS PLATFORM/CAB

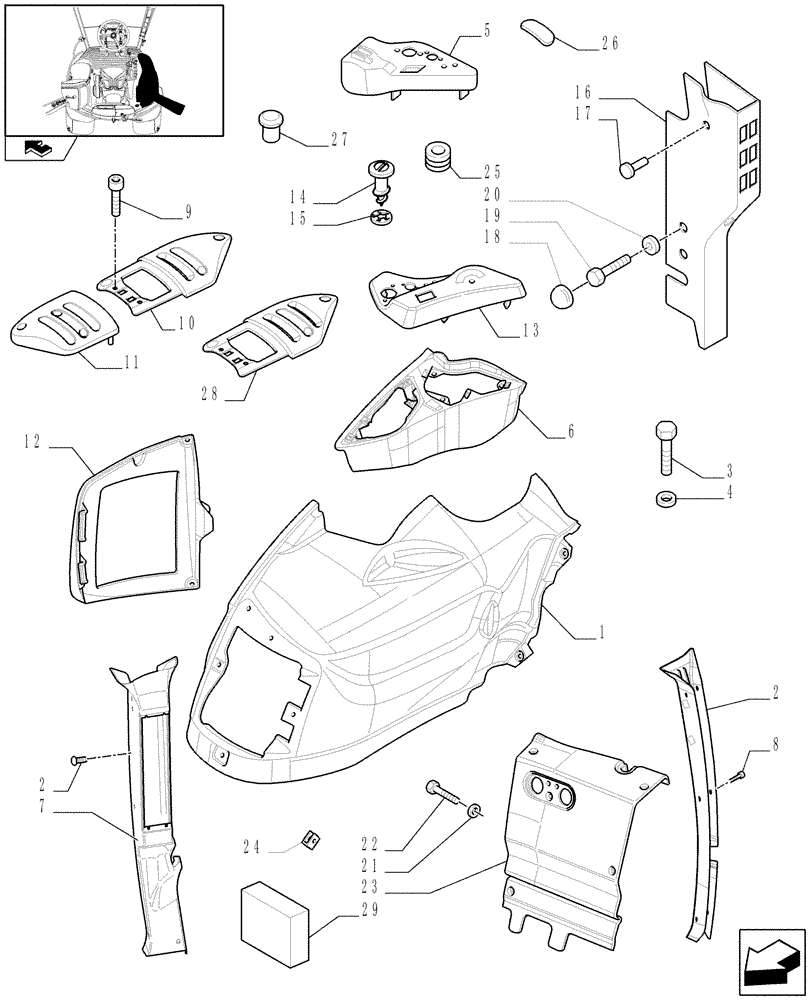

Схема запчастей Case IH PUMA 195 - (1.93.0[02C]) - CONTROLS COVER - D6801 (10) - OPERATORS PLATFORM/CAB
13
12
5
4
23
27
2
28
25
1
10
2
17
9
3
21
16
18
29
22
15
8
14
7
26
6
1
20
24
19
1
home

Артикул

Название

Примечание

Количество

1

84242733

PANEL

RH

1шт.

2

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

14шт.

3

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

10шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

5

84315935

COVER

1шт.

6

84212620

PADDING

1шт.

7

87388211

PADDING

RH Front

1шт.

8

84222160

SOFT TRIM

LH Front

1шт.

9

10589928

SCREW,Flat Hd, M6 x 20.2mm OAL 10mm Collar

M6 x 22

5шт.

10

84190831

BEZEL

1шт.

11

84190826

BEZEL

1шт.

4 Remote Valve, VAR.669

1шт.

12

87734672

COVER

1шт.

13

84249026

COVER

1шт.

With 4 Speed Shiftable PTO Electronic Control, VAR.349

1шт.

Rear PTO 540/1000 Interchangeable Shafts, VAR.809

1шт.

Rear PTO 540E/1000 Interchangeable Shafts, VAR.335, Basildon Production only

1шт.

14

87734455

FASTENER

2шт.

15

87734456

RETAINER,13mm OD x 0.8mm Thk

2шт.

16

84285944

PADDING

RH Rear

1шт.

17

82023460

STUD,M7.85 x 19.50mm, Plastic

4шт.

18

82012814

CAP,M10

2шт.

19

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

20

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

21

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

10шт.

22

15646907

SELF-TAP SCREW,Pozidriv Pan Hd, 16mm L

M6 x 12

4шт.

23

87479668

PANEL

1шт.

24

87567755

SPRING NUT,M5

NUT

2шт.

25

83908579

PLUG,M7.62

1шт.

Rear PTO 540/1000 Interchangeable Shafts - 6 Spline Filted - 21 Spline, VAR.809

1шт.

Rear PTO 540E/1000 Interchangeable Shafts, VAR.335, Basildon Production only

1шт.

26

87302919

BLANK-OFF PLUG

1шт.

Rear PTO 540/1000 Interchangeable Shafts - 6 Spline Filted - 21 Spline, VAR.809

1шт.

Rear PTO 540E/1000 Interchangeable Shafts, VAR.335, Basildon Production only

1шт.

26

47056777

BLANK-OFF PLUG,31mm x 87mm, Black

1шт.

27

81862738

PLUG,M38 x 28 x 5mm

28MM

1шт.

28

84190828

BEZEL

1шт.

4 Remote Valve, VAR.669

1шт.

29

84210984

BLOCK

1шт.

Выбрано товаров: 39
