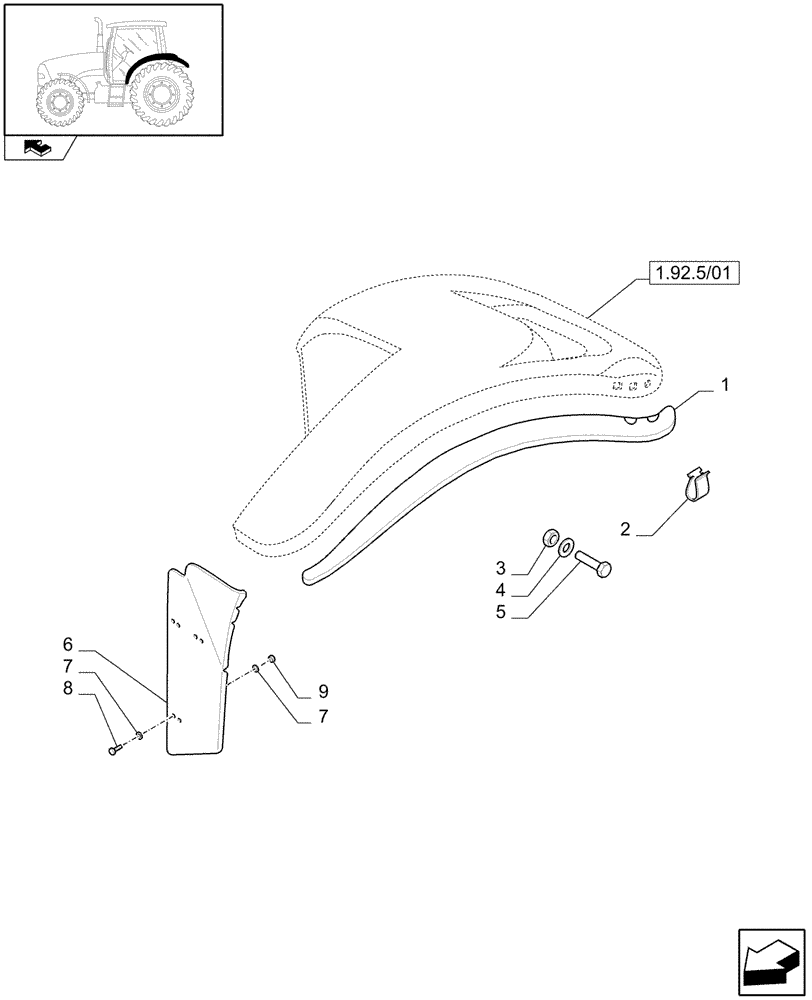

Запчасти Case IH PUMA 195 (1.92.5/03[01A]) - (VAR.293-601) WIDE REAR FENDERS - EXTENSIONS - D7076 (10) - OPERATORS PLATFORM/CAB

1

84349866

FENDER EXTENSION

LH, Serial Range: -C7118

1шт.

With 75MM Rear Fender Extensions, VAR.293

1шт.

1

84349867

FENDER EXTENSION

RH, Serial Range: -C7118

1шт.

With 75MM Rear Fender Extensions, VAR.293

1шт.

1

84349869

FENDER EXTENSION

LH

1шт.

With 180MM Rear Fender Extensions, VAR.601

1шт.

1

84349870

FENDER EXTENSION

RH

1шт.

With 180MM Rear Fender Extensions, VAR.601

1шт.

2

87622826

SPRING CLIP,0.5mm Thk

14шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

8шт.

4

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

16шт.

5

10977621

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

8шт.

6

84156116

DEFLECTOR

, Start Serial: D7118

1шт.

With 75MM Rear Fender Extensions, VAR.293

1шт.

6

87484525

DEFLECTOR

, Start Serial: D7118

1шт.

With 75MM Rear Fender Extensions, VAR.293

1шт.

7

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

, Start Serial: D7118

12шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

, Start Serial: D7118

6шт.

9

12574211

NUT,M6 x 1, Cl 8

, Start Serial: D7118

6шт.
