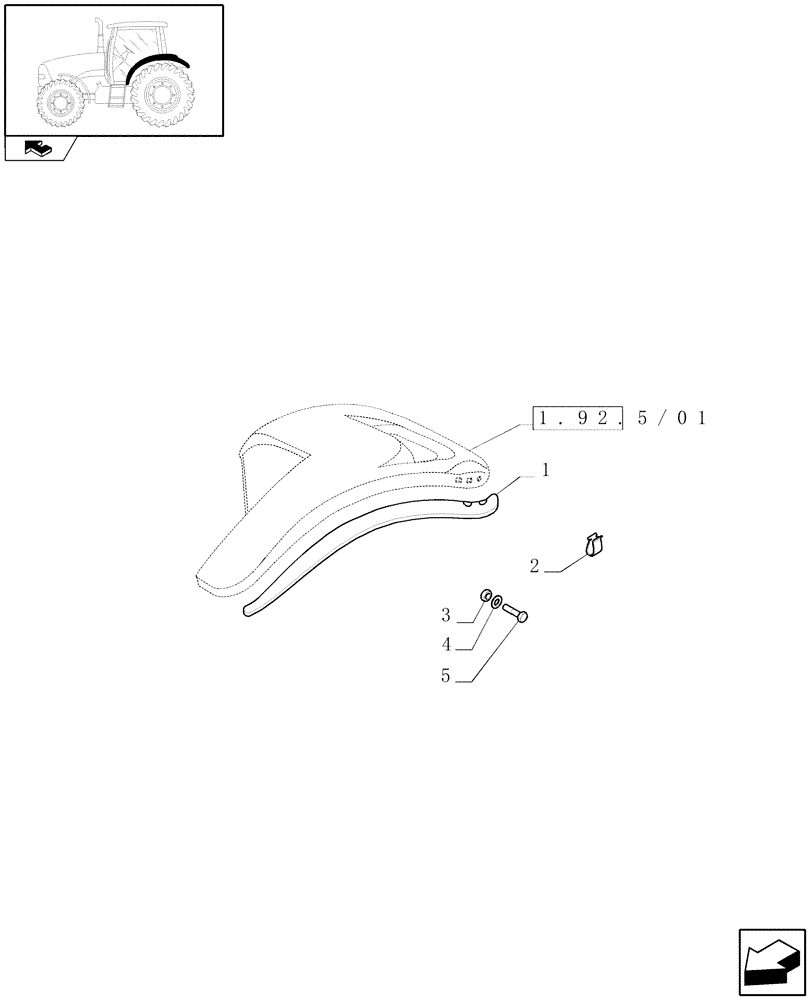

Запчасти Case IH PUMA 195 (1.92.5/03[01]) - (VAR.293-601) WIDE REAR FENDERS - EXTENSIONS - C7076 (10) - OPERATORS PLATFORM/CAB

1

87520691

FENDER EXTENSION

LH

1шт.

With 75MM Rear Fender Extensions, VAR.293

1шт.

1

87520692

FENDER EXTENSION

RH

1шт.

With 75MM Rear Fender Extensions, VAR.293

1шт.

1

87520693

FENDER EXTENSION

LH

1шт.

With 180MM Rear Fender Extensions, VAR.601

1шт.

1

87520694

FENDER EXTENSION

RH

1шт.

With 180MM Rear Fender Extensions, VAR.601

1шт.

2

87622826

SPRING CLIP,0.5mm Thk

1шт.

Q.ty=16 with Rear fender extensions for wide fenders 75mm, VAR.293. Q.ty=18 with Rear fender extensions for wide fenders 180mm, VAR.601

1шт.

3

14188971

CLIP

4шт.

4

10519201

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

5

82880745

SCREW,Phillips Drive, Pan HD, M4 x 16mm, Cl 4.8

M4 x 16

4шт.
