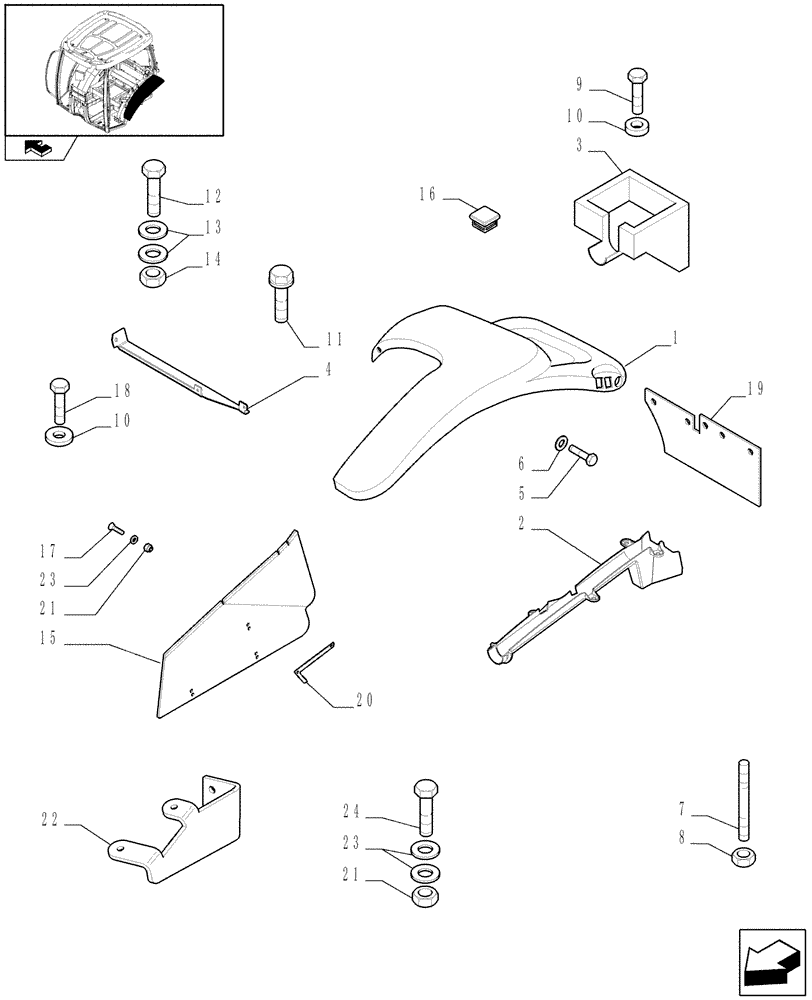

Запчасти Case IH PUMA 195 (1.92.5/01) - (VAR.089/1) EXTREMITY LIGHTS FOR NAR OHIO WIDE FENDERS - FENDERS AND EXTENSIONS (10) - OPERATORS PLATFORM/CAB

1

87617859

REAR FENDER

LH

1шт.

1

87617860

REAR FENDER

RH

1шт.

2

84537442

COVER

LH

1шт.

2

84537443

COVER

RH

1шт.

3

87383820

COVER

LH

1шт.

3

87383821

COVER

RH

1шт.

4

87389465

BRACKET

LH

1шт.

4

87389466

BRACKET

RH

1шт.

5

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

18шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

18шт.

7

13517021

STUD,M8 x 12mm x 25mm, Cl 8.8

4шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

9

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

10шт.

10

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

18шт.

11

83992627

CAPTIVE WASHER SCREW,Hex, M8 x 1.25 x 25mm, Pilot

2шт.

12

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

13

12644301

WASHER,M10 x 35 x 3

4шт.

14

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

15

84156116

DEFLECTOR

LH, Serial Range: -C7118

1шт.

15

87484525

DEFLECTOR

RH, Serial Range: -C7118

1шт.

16

82033880

PLUG,70mm ID

2шт.

17

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

4шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

19

87705290

MUDFLAP

2шт.

20

87705291

SUPPORT

2шт.

21

12574211

NUT,M6 x 1, Cl 8

10шт.

22

82038220

BRACKET

LH

1шт.

22

82038222

BRACKET

RH

1шт.

23

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

20шт.

24

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

6шт.
