Запчасти Case IH PUMA 195 (1.92.5[01]) - REAR FENDERS (10) - OPERATORS PLATFORM/CAB

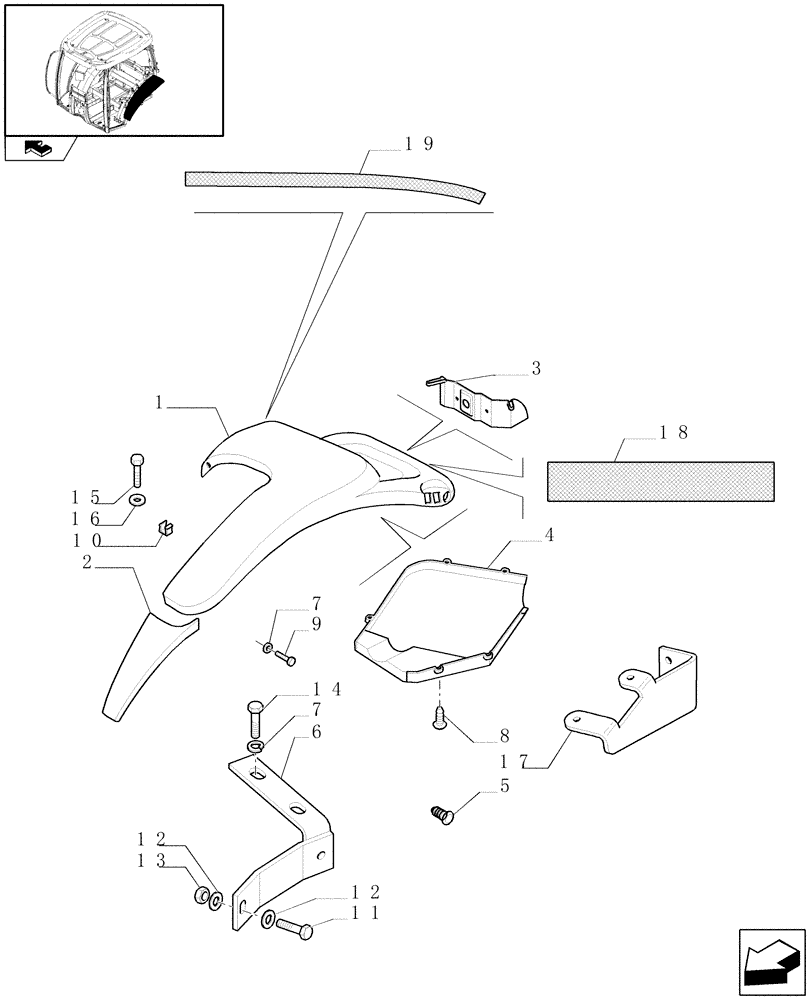

Схема запчастей Case IH PUMA 195 - (1.92.5[01]) - REAR FENDERS (10) - OPERATORS PLATFORM/CAB
4
8
15
13
6
3
7
11
14
7
2
16
9
12
19
1
5
home
17
18
12
10

Артикул

Название

Примечание

Количество

1

87554853

REAR FENDER

LH

1шт.

1

87554854

REAR FENDER

RH

1шт.

2

82038501

REAR FENDER

LH

1шт.

2

82038500

REAR FENDER

RH

1шт.

3

82032773

COVER

LH

1шт.

3

82032772

COVER

RH

1шт.

4

87304236

SUPPORT

LH

1шт.

4

87304235

SUPPORT

RH

1шт.

5

81870039

FASTENER,M8 x 1.5 x 22mm

4шт.

6

82037053

SUPPORT

LH

1шт.

6

82037051

SUPPORT

RH

1шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

18шт.

8

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

50 x 10

20шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

11шт.

10

82010838

SPRING CLIP,0.5mm Thk

6шт.

11

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

2шт.

12

84188423

4шт.

13

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

14

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

15

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

15

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

16

12628921

WASHER,8.15mm ID x 25mm OD x 4mm Thk

2шт.

17

82038220

BRACKET

LH

1шт.

Extremity Lighting for NA, VAR.667

1шт.

17

82038222

BRACKET

RH

1шт.

Extremity Lighting for NA, VAR.667

1шт.

18

87529851

DECAL

Retro Reflector, Serial Range: -C6526

2шт.

With USA Completition Package, VAR.100

1шт.

Basildon Production Models only

1шт.

Whit Rear Reflectors for Narrow Fenders, VAR.093

1шт.

18

84249298

DECAL

Retro Reflector, Start Serial: D6526

2шт.

With USA Completition Package, VAR.100

1шт.

Basildon Production Models only

1шт.

Whit Rear Reflectors for Narrow Fenders, VAR.093

1шт.

19

87529852

DECAL

1шт.

With Rear Reflectors for wide Fenders, VAR.094

1шт.

Basildon Production Models only

1шт.

19

87529853

DECAL

1шт.

With Rear Reflectors for wide Fenders, VAR.094

1шт.

Basildon Production Models only

1шт.

Выбрано товаров: 40
