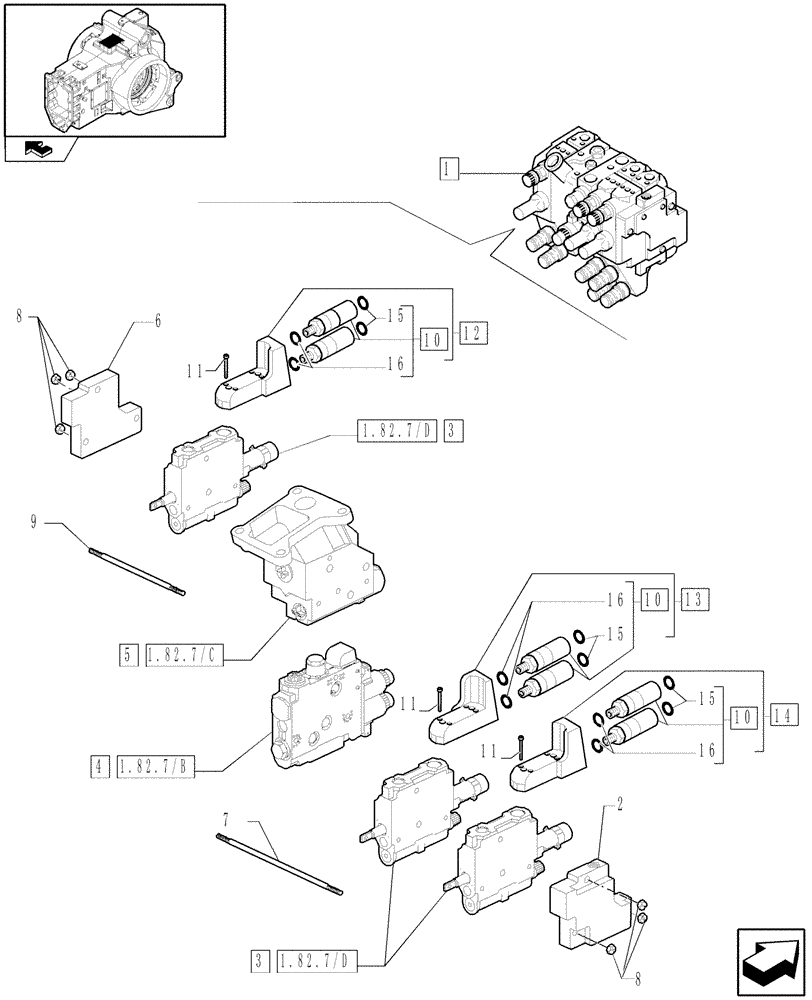

Запчасти Case IH PUMA 195 (1.82.7/ A) - 3 X MECHANICAL CLOSED CENTER REMOTES (07) - HYDRAULIC SYSTEM

1

87311372

CONTROL VALVE

REMOTE CONTROL VALVE

1шт.

2

5195157

COVER

1шт.

3

87313431

VALVE SECTION

3шт.

87313431R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210 ALL SERIAL NUMBER Z*BE 40001 --> 50000 AND 60001 --> … ALL(1/09-)

3шт.

87313431C

CORE-VALVE HYD

RETURN NUMBER

1шт.

4

47136333

CONTROL VALVE

1шт.

5

47136304

BODY

1шт.

6

5190710

PLATE

1шт.

7

5195168

TIE-ROD,M8

2шт.

8

5195169

NUT,M8

6шт.

9

5195170

BOLT

1шт.

10

87381944

COUPLING, QUICK, FEM

3шт.

11

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

12шт.

12

87381984

HYDRAULIC MANIFOLD

is faster 4bm13

1шт.

13

87381982

HYDRAULIC MANIFOLD

is faster 4bm11

1шт.

14

87381983

HYDRAULIC MANIFOLD

is faster 4bm12

1шт.

15

87382012

SEAL KIT

6шт.

16

14438085

O-RING,19.3mm ID x 2.4mm

6шт.
