(1.82.715/B) - TRAILER BRAKE VALVE (ITALY) - MANIFOLD - BREAKDOWN

Запчасти Case IH PUMA 195 (1.82.715/B) - TRAILER BRAKE VALVE (ITALY) - MANIFOLD - BREAKDOWN (07) - HYDRAULIC SYSTEM

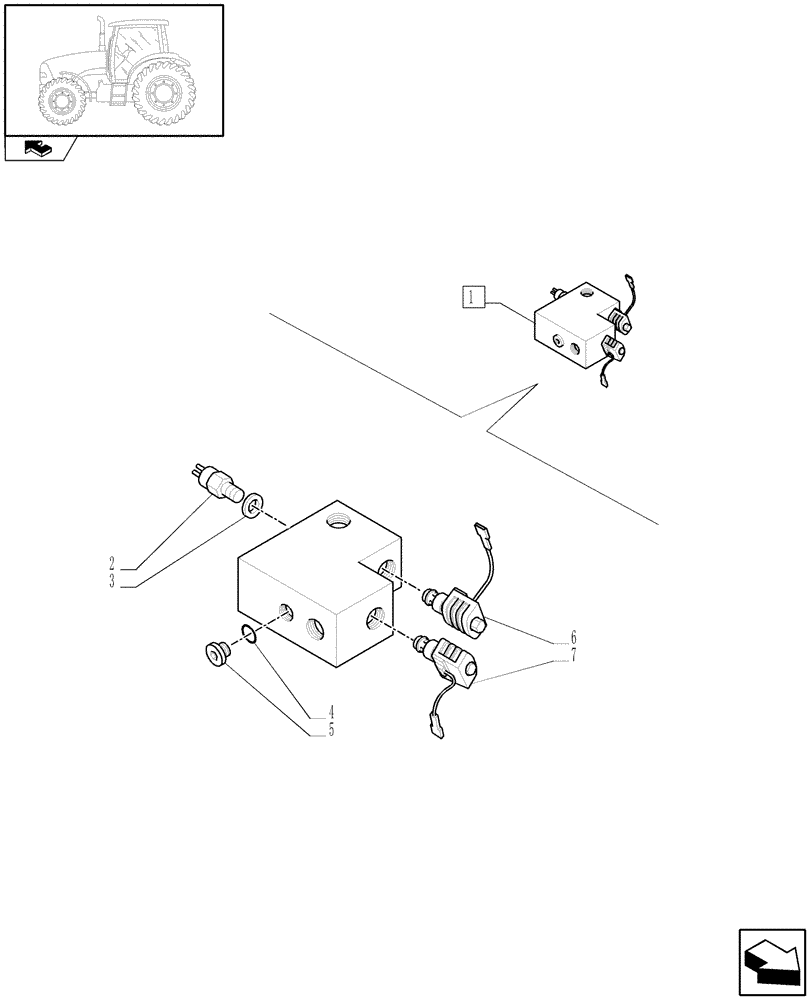

Схема запчастей Case IH PUMA 195 - (1.82.715/B) - TRAILER BRAKE VALVE (ITALY) - MANIFOLD - BREAKDOWN (07) - HYDRAULIC SYSTEM
3
5
home
6
4
1
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5196175

BRAKE VALVE

ASSY

1шт.

2

87494633

PRESSURE SWITCH

Oil Pressure

1шт.

3

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

4

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

5

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

6

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

7

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.
