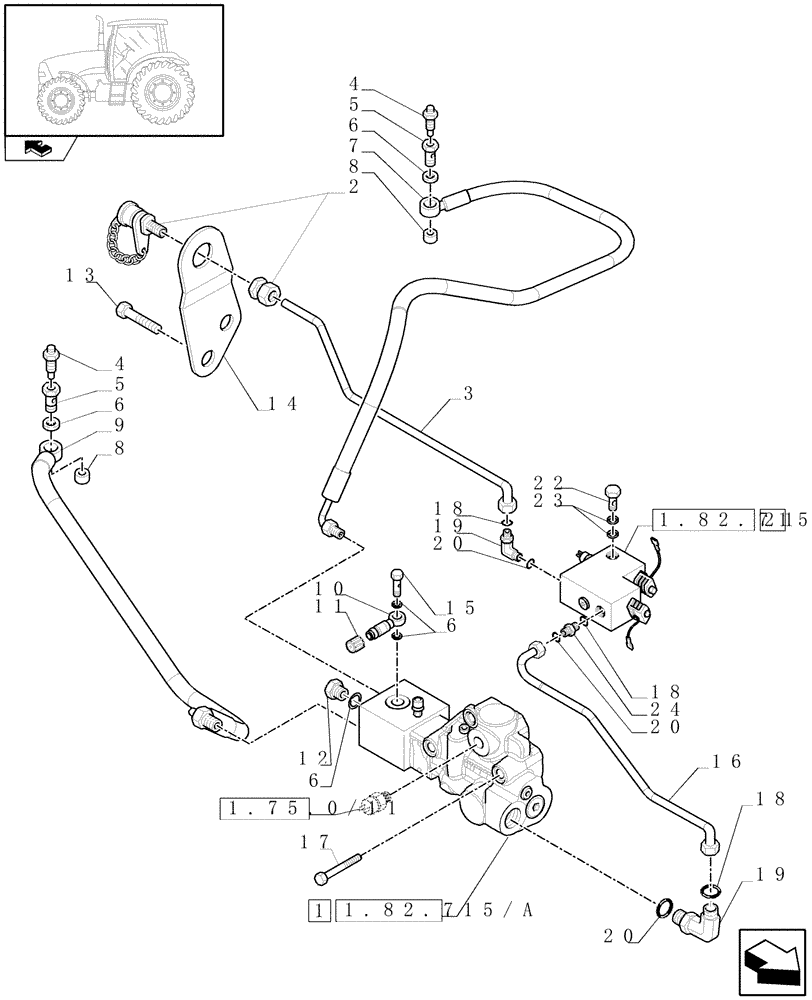

Запчасти Case IH PUMA 195 (1.82.715) - (VAR.418) HYDRAULIC TRAILER BRAKE (ITALY) - BRAKING SYSTEM (07) - HYDRAULIC SYSTEM

1

47135625

BRAKE VALVE

ASSY

1шт.

2

44015354

QUICK MALE COUPLING

1шт.

3

47123576

HYD TUBE

1шт.

4

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

5

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

6

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

5шт.

7

87635545

HYDRAULIC HOSE,4.75mm ID x 820mm L

Left Brake

1шт.

8

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

9

87635543

HYDRAULIC HOSE

Right Brake

1шт.

10

82030175

BANJO FITTING,M8 x 1 x 53mm

Incl.11

1шт.

11

44995074

PLUG,M8 x 1.0

1шт.

12

47131496

PLUG,Hex, M12 x 1

12 x 1

2шт.

13

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

5196322

BRACKET

1шт.

15

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

16

87396169

PIPE

1шт.

17

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

17

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

18

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

3шт.

19

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Incl.18, 20

2шт.

20

14437985

O-RING,15.3mm ID x 2.4mm

3шт.

21

5196175

BRAKE VALVE

ASSY

1шт.

22

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

23

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18

2шт.

24

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

Incl.18, 20

1шт.
