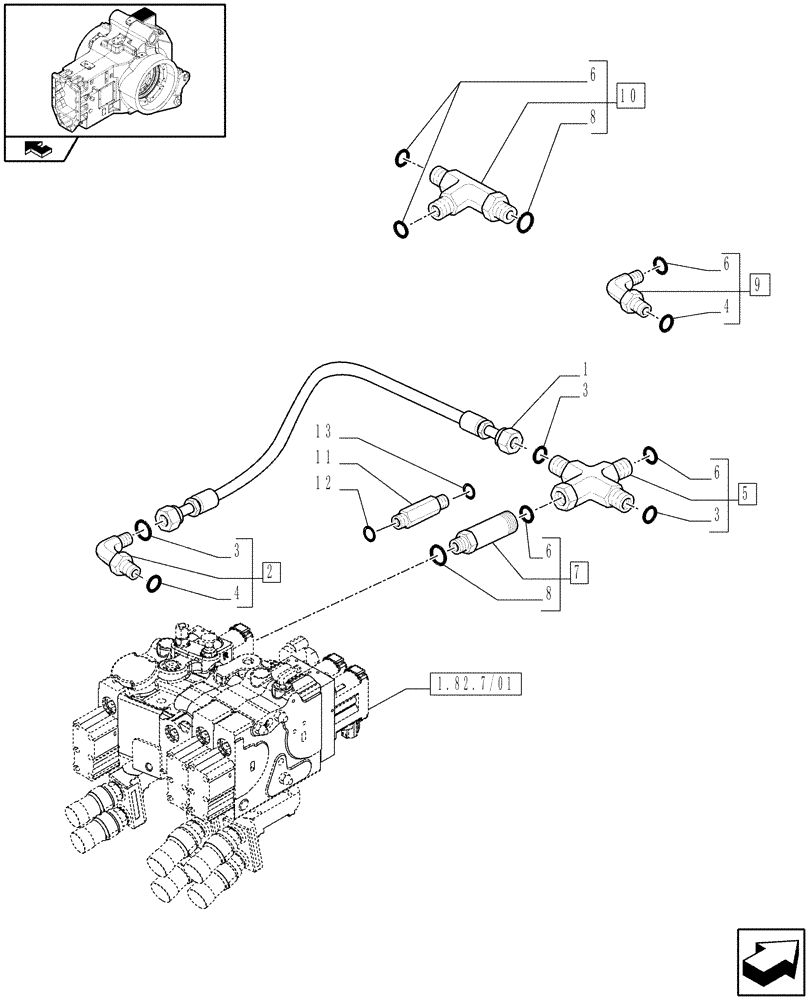

Запчасти Case IH PUMA 195 (1.82.7/09[03]) - (VAR.484) RIGHT LIFT ROD AND TOP LINK HYDRAULIC ADJUST W/ELECTRONIC CONTROL - PIPES (07) - HYDRAULIC SYSTEM

1

47123014

HYDRAULIC HOSE,10mm ID x 485mm L, SAE 100R2

1шт.

2

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

13/16"-16;M18 x 1.5

1шт.

3

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

3шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

5

5199116

4 WAY CONNECTION

13/16"-16, 1"-14, Incl. 3, 6

1шт.

6

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

7

5199935

HYD CONNECTOR

72 mm, Serial Range: -C6800

1шт.

8

14438085

O-RING,19.3mm ID x 2.4mm

20шт.

9

5185562

ELBOW

1шт.

10

5187064

TEE

1шт.

11

84323257

HYD CONNECTOR,M22 x 1.5 x 83mm L

Incl. 12, 13, 83 mm, Start Serial: D6800

1шт.

12

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
