(1.82.7/07C) - ELECTRONIC MID MOUNTED VALVES 4 SLICE - BREAKDOWN

Запчасти Case IH PUMA 195 (1.82.7/07C) - ELECTRONIC MID MOUNTED VALVES 4 SLICE - BREAKDOWN (07) - HYDRAULIC SYSTEM

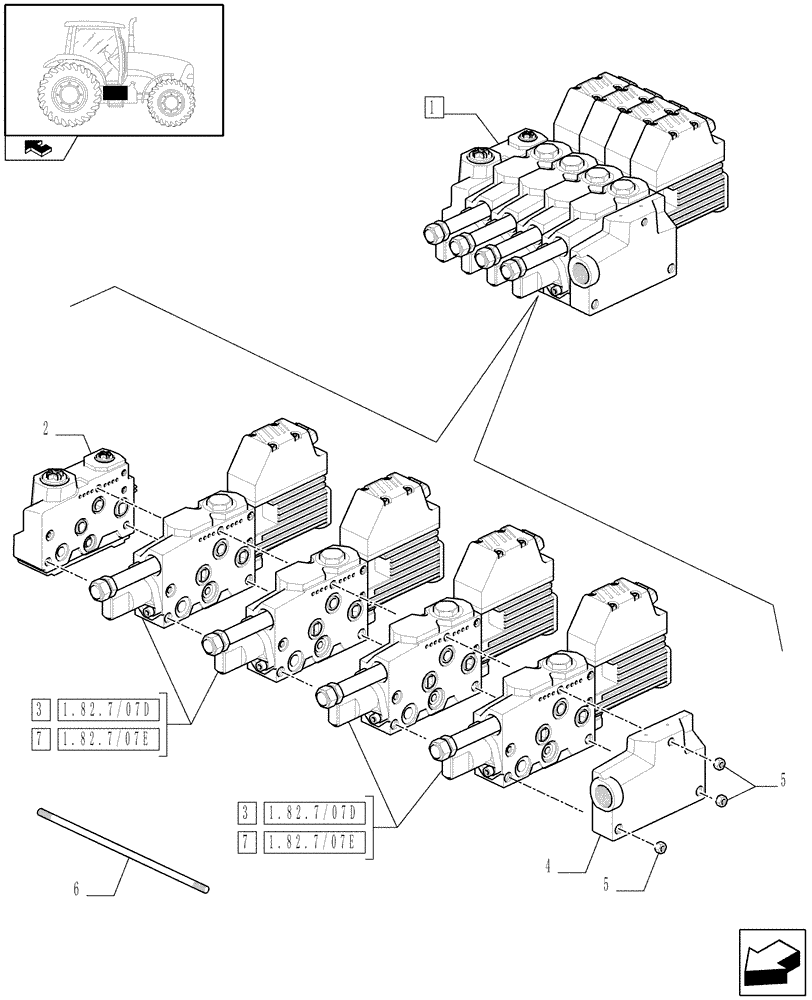

Схема запчастей Case IH PUMA 195 - (1.82.7/07C) - ELECTRONIC MID MOUNTED VALVES 4 SLICE - BREAKDOWN (07) - HYDRAULIC SYSTEM
7
1
7
6
5
home
1.82.7/07e
1.82.7/07e
1.82.7/07d
1.82.7/07d
3
5
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82038055

CONTROL VALVE

, Serial Range: -C6544

1шт.

1

84214466

CONTROL VALVE

, Start Serial: D6544

1шт.

2

87744557

MANIFOLD

1шт.

3

84151263

ELECTRO-VALVE

, Serial Range: -C6544

4шт.

3

84151263R

REMAN-HYD VALVE

Remanufactured Electro-Valve

4шт.

3

84151263C

CORE-VALVE HYD

CORE-HYD VALVE Return Number, VALVE, SINGLE SLICE MMV

4шт.

84214463R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195,PUMA 210 All SN Z*BE 40001 - 50000 AND 60001 - …(Serial Range: -C6544) (1/09-), Reman For New P/N 84151263

4шт.

84214463C

CORE-VALVE HYD

Return Number

1шт.

3

87520021C

CORE-VALVE HYD

CORE-HYD VALVE Return Number, VALVE, SINGLE SLICE MMV - for N.A. Only

1шт.

4

87750999

END PLATE

HYDRAULIC VALVE

1шт.

5

5195169

NUT,M8

3шт.

6

87371933

TIE-ROD

3шт.

7

84214463

ELECTRO-VALVE

, Start Serial: D6544

4шт.

84214463R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210 all SN Z*BE 40001 - 50000 AND 60001 - … (Start Serial D6544) (1/09-)

4шт.

84214463C

CORE-VALVE HYD

Return Number

1шт.

84214463C

CORE-VALVE HYD

CORE-HYD VALVE Return Number, VALVE, SINGLE SLICE MMV - for N.A. Only

1шт.
