Запчасти Case IH PUMA 195 (1.82.7/07[02]) - (VAR.108-109-110) ELECTRONIC MID MOUNTED VALVES - PIPES (07) - HYDRAULIC SYSTEM

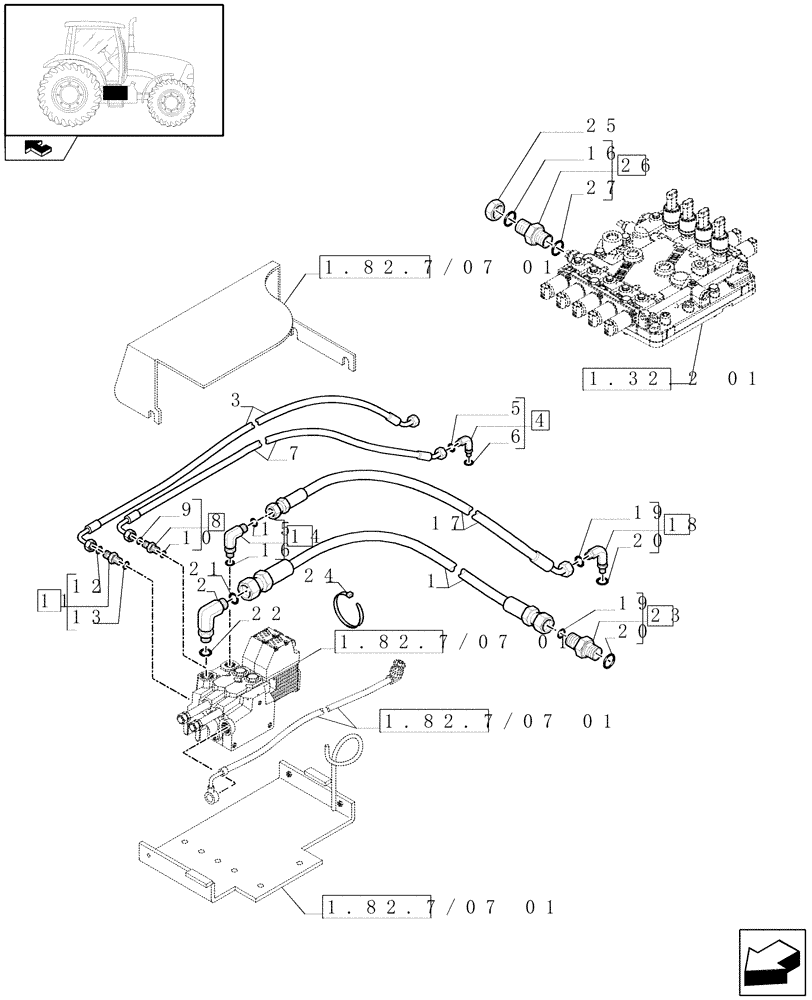

Схема запчастей Case IH PUMA 195 - (1.82.7/07[02]) - (VAR.108-109-110) ELECTRONIC MID MOUNTED VALVES - PIPES (07) - HYDRAULIC SYSTEM
21
10
11
8
9
7
22
16
1.32.2 01
1
14
19
19
16
1.82.7/07 01
18
home
1.82.7/07 01
1.82.7/07 01
1.82.7/07 01
26
5
6
27
24
2
23
12
25
15
13
20
17
4
20
3

Артикул

Название

Примечание

Количество

1

87568645

HYDRAULIC HOSE,15.88mm ID x 1080mm L, SAE 100R2

240 BAR SUPPLY

1шт.

2

5194728

90 ELBOW

Incl. 21, 22

1шт.

3

87314897

HOSE,6.35mm ID x 980mm L, SAE 100R2

LOAD SENSE

1шт.

4

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

1шт.

5

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

6

14438185

O-RING,24mm ID x 3mm

1шт.

7

84389501

HOSE ASSY.,10mm ID x 850mm L, SAE 100R2

24 BAR SUPPLY, 850MM

1шт.

8

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

1шт.

9

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

11

5185045

HYD CONNECTOR

1шт.

12

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

13

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

14

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

1шт.

15

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

16

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

17

87520009

FLEXIBLE HOSE

Servo Return

1шт.

18

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

20

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

23

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

1шт.

24

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

25

82016749

PLUG,11/16-16 ORFS

1шт.

26

5196844

HYD CONNECTOR

1шт.

27

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

Выбрано товаров: 27
