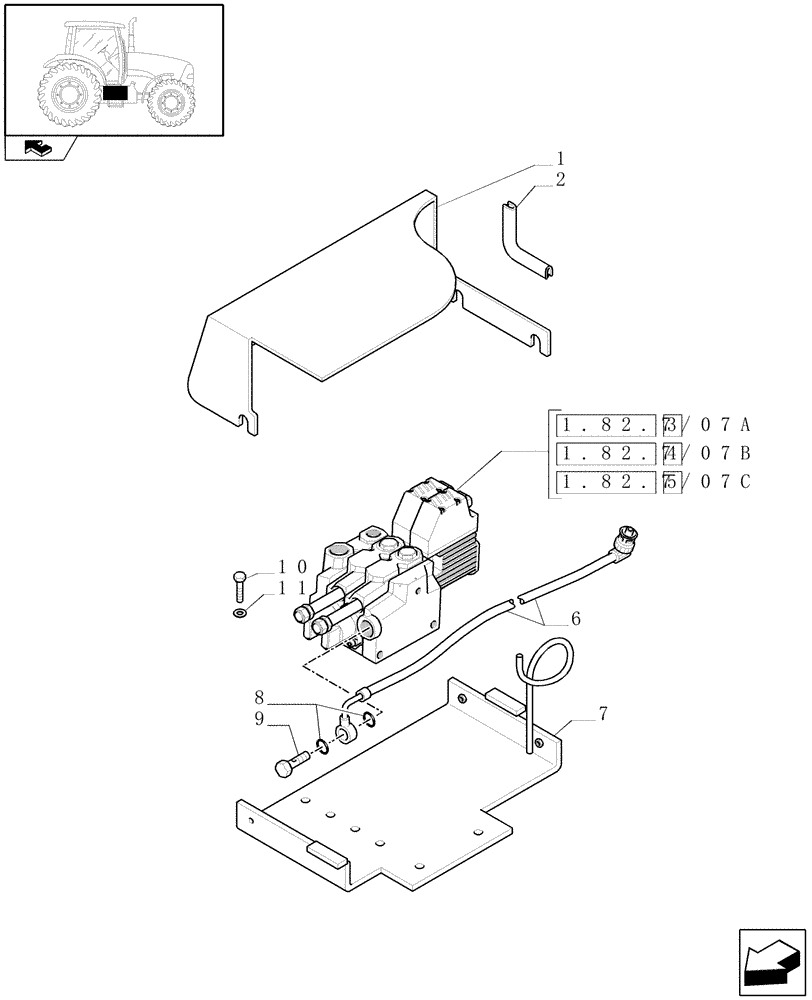

Запчасти Case IH PUMA 195 (1.82.7/07[01]) - (VAR.108-109-110) ELECTRONIC MID MOUNTED VALVES - COVER SUPPORT AND PIPES (07) - HYDRAULIC SYSTEM

1

87736308

COVER ASSY

1шт.

2

83964601

MOLDING,164mm L

1шт.

2

82036856

MOLDING,355mm L

1шт.

2

82869674

MOLDING,88.5mm L

1шт.

3

82038052

CONTROL VALVE

2 Slices, Serial Range: -C6544

1шт.

With Electronic Mid Mounted Valves, 2 Slice, VAR.108

1шт.

3

84214464

CONTROL VALVE

2 Slices, Start Serial: D6544

1шт.

With Electronic Mid Mounted Valves, 2 Slice, VAR.108

1шт.

3

84214464R

REMAN-HYD VALVE

Reman Valve Assy - 2 Slices

1шт.

3

84214464C

CORE-VALVE HYD

Core Return Number

1шт.

4

82038054

CONTROL VALVE

3 Slices, Serial Range: -C6544

1шт.

With Electronic Mid Mounted Valves, 3 Slice, VAR.109

1шт.

84214465R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210 all SERIAL NUMBER Z*BE 40001 --> 50000 AND 60001 --> … (1/09-), Reman For New P/N 82038054

1шт.

84214465C

CORE-VALVE HYD

Return Number

1шт.

4

84214465

CONTROL VALVE

3 Slices, Start Serial: D6544

1шт.

With Electronic Mid Mounted Valves, 3 Slice, VAR.109

1шт.

84214465R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210 all SERIAL NUMBER Z*BE 40001 --> 50000 AND 60001 --> …, Start Serial: D6544 (1/09-)

1шт.

84214465C

CORE-VALVE HYD

Return Number

1шт.

5

82038055

CONTROL VALVE

4 Slices, Serial Range: -C6544

1шт.

With Electronic Mid Mounted Valves, 4 Slice, VAR.110

1шт.

5

84214466

CONTROL VALVE

4 Slices, Start Serial: D6544

1шт.

With Electronic Mid Mounted Valves, 4 Slice, VAR.110

1шт.

6

87736301

HOSE ASSY.,15.88mm ID x 800mm L, SAE 100R3

RETURN

1шт.

7

87598923

SUPPORT

1шт.

8

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

M22

2шт.

10

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

11

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

3шт.

11

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.
