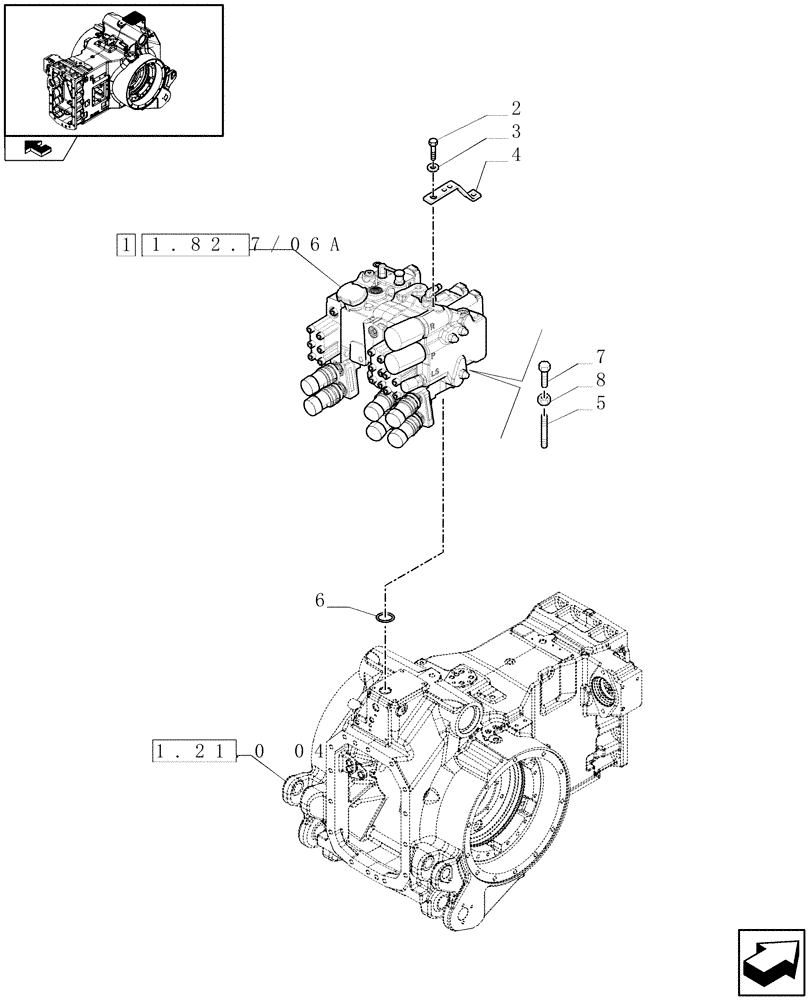

Запчасти Case IH PUMA 195 (1.82.7/06) - (VAR.683) REAR ELECTRONIC REMOTE CONTROL VALVES WITH 3 ELEMENTS AND POWER BEYOND (07) - HYDRAULIC SYSTEM

1

87582247

CONTROL VALVE

ASSY

1шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

87623286

SUPPORT

1шт.

5

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

M10 x 1.25 x 30

2шт.

6

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

7

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

12164711

NUT,M10 x 1.25, Cl 8

2шт.
