(1.82.7/05) - (VAR.252) REAR ELECTRONIC REMOTE CONTROL VALVES WITH 5 ELEMENTS

Запчасти Case IH PUMA 195 (1.82.7/05) - (VAR.252) REAR ELECTRONIC REMOTE CONTROL VALVES WITH 5 ELEMENTS (07) - HYDRAULIC SYSTEM

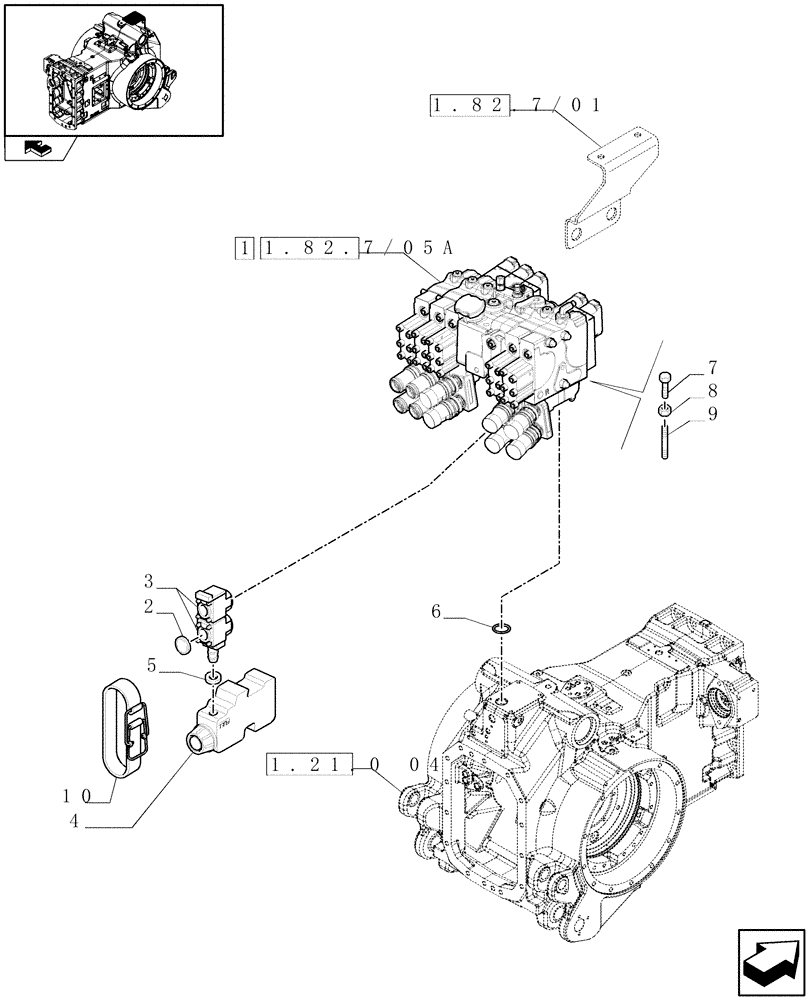

Схема запчастей Case IH PUMA 195 - (1.82.7/05) - (VAR.252) REAR ELECTRONIC REMOTE CONTROL VALVES WITH 5 ELEMENTS (07) - HYDRAULIC SYSTEM
9
7
2
6
5
1.82.7/05a
home
1.82.7/01
1.21.0 04
1
10
8
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87354270

CONTROL VALVE

ASSY

1шт.

2

82029895

DISC,20mm D, Black

Black

10шт.

3

82033220

DUST CAP

5шт.

4

47922580

BOTTLE

5шт.

5

82029356

SEAL,20.00mm OD x 3.00mm

5шт.

6

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

7

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

12164711

NUT,M10 x 1.25, Cl 8

2шт.

9

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

M10 x 1.25 x 30

2шт.

10

82032061

CLIP

5шт.
