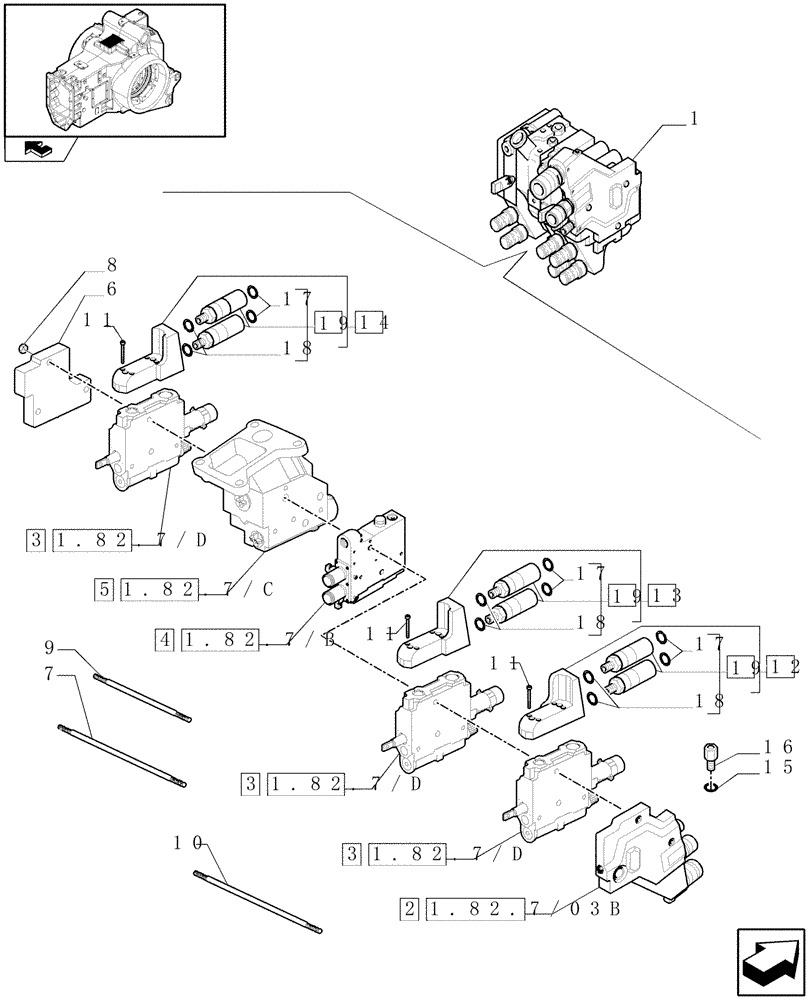

Запчасти Case IH PUMA 195 (1.82.7/03A) - 3 X MECHANICAL BOSCH REMOTES (07) - HYDRAULIC SYSTEM

1

87311371

CONTROL VALVE

REMOTE CONTROL VALVE

1шт.

2

47135544

HYD VALVE SECTION

1шт.

3

87313431

VALVE SECTION

3шт.

87313431R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210 ALL SERIAL NUMBER Z*BE 40001 --> 50000 AND 60001 --> … ALL (1/09-)

3шт.

87313431C

CORE-VALVE HYD

RETURN NUMBER

1шт.

4

47136333

CONTROL VALVE

EDC

1шт.

5

47136304

BODY

1шт.

6

5190710

PLATE

1шт.

7

5195168

TIE-ROD,M8

2шт.

8

5195169

NUT,M8

6шт.

9

47127002

TIE-ROD

1шт.

10

5191573

DECAL

3шт.

11

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

12шт.

12

87381981

HYDRAULIC MANIFOLD

is faster 4bm10

1шт.

13

87381982

HYDRAULIC MANIFOLD

is faster 4bm11

1шт.

14

87381983

HYDRAULIC MANIFOLD

is faster 4bm12

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

16

5191704

CHECK VALVE

1шт.

17

87382012

SEAL KIT

6шт.

18

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

19

87381944

COUPLING, QUICK, FEM

ASSY

6шт.
