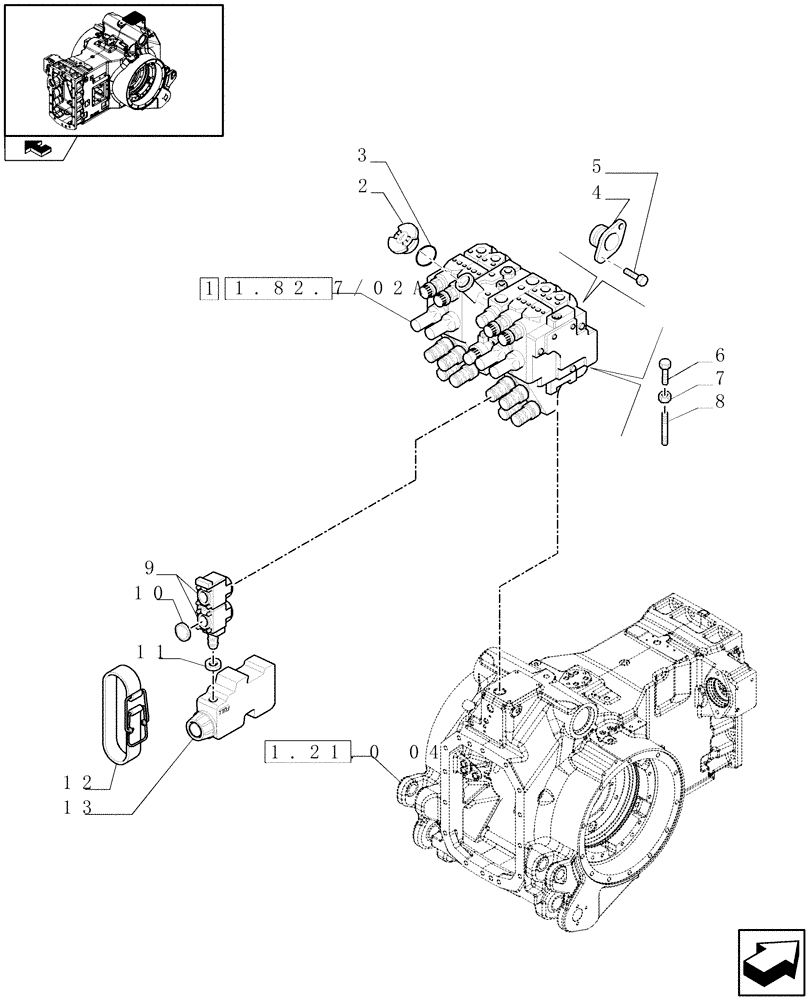

Запчасти Case IH PUMA 195 (1.82.7/02) - (VAR.669) 4 X MECHANICAL BOSCH REMOTES (07) - HYDRAULIC SYSTEM

1

87311373

CONTROL VALVE

REMOTE CONTROL VALVE

1шт.

2

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

3

87313431

VALVE SECTION

4шт.

87313431R

REMAN-HYD VALVE

PUMA 165 SERIAL NUMBER Z*BE 40001 --> 50000 AND 60001 --> … (1/09-)

4шт.

87313431C

CORE-VALVE HYD

RETURN NUMBER

1шт.

4

5189606

SUPPORT

4шт.

5

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

8шт.

6

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

7

12164711

NUT,M10 x 1.25, Cl 8

2шт.

8

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

2шт.

9

82033220

DUST CAP

1шт.

Qty 4 for ST. Valentin Models; Qty 2 for Basildon Models

1шт.

10

82029895

DISC,20mm D, Black

1шт.

Qty 8 for ST. Valentin Models; Qty 4 for Basildon Models

1шт.

11

82029356

SEAL,20.00mm OD x 3.00mm

1шт.

Qty 4 for ST. Valentin Models; Qty 2 for Basildon Models

1шт.

12

82032061

CLIP

1шт.

Qty 4 for ST. Valentin Models; Qty 2 for Basildon Models

1шт.

13

47922580

BOTTLE

1шт.

Qty 4 for ST. Valentin Models; Qty 2 for Basildon Models

1шт.
