Запчасти Case IH PUMA 195 (1.82.7) - REAR REMOTE CONTROL VALVES WITH 3 ELEMENTS (07) - HYDRAULIC SYSTEM

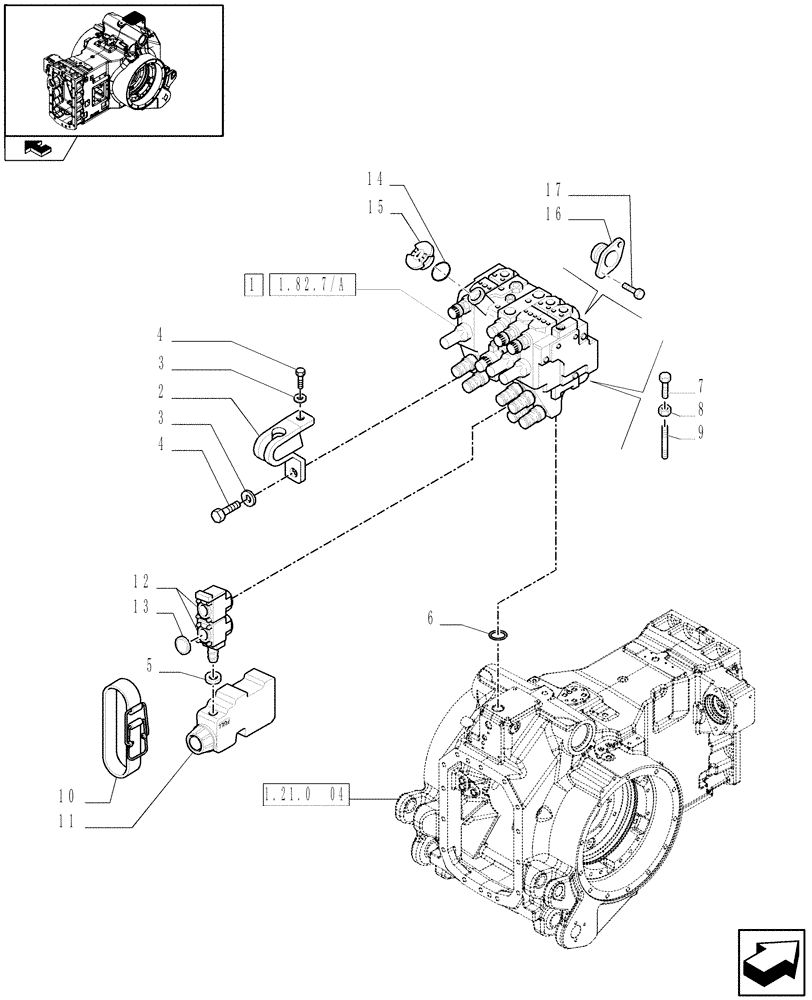

Схема запчастей Case IH PUMA 195 - (1.82.7) - REAR REMOTE CONTROL VALVES WITH 3 ELEMENTS (07) - HYDRAULIC SYSTEM
9
4
14
1
6
8
4
5
11
7
13
3
3
home
1.82.7/a
17
10
16
15
1.21.0 04
12
2

Артикул

Название

Примечание

Количество

1

87311372

CONTROL VALVE

REMOTE CONTROL VALVE ASSY

1шт.

2

5189351

BRACKET

1шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

4

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

82029356

SEAL,20.00mm OD x 3.00mm

3шт.

6

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

7

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

12164711

NUT,M10 x 1.25, Cl 8

2шт.

9

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

M10 x 1.25 x 30

2шт.

10

82032061

CLIP

3шт.

11

47922580

BOTTLE

3шт.

12

82033220

DUST CAP

3шт.

13

82029895

DISC,20mm D, Black

Black

6шт.

14

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

15

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

16

5189606

SUPPORT

3шт.

17

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

6шт.

Выбрано товаров: 17
