(1.82.6) - HYDRAULIC POWER LIFT - CYLINDER AND PINS

Запчасти Case IH PUMA 195 (1.82.6) - HYDRAULIC POWER LIFT - CYLINDER AND PINS (07) - HYDRAULIC SYSTEM

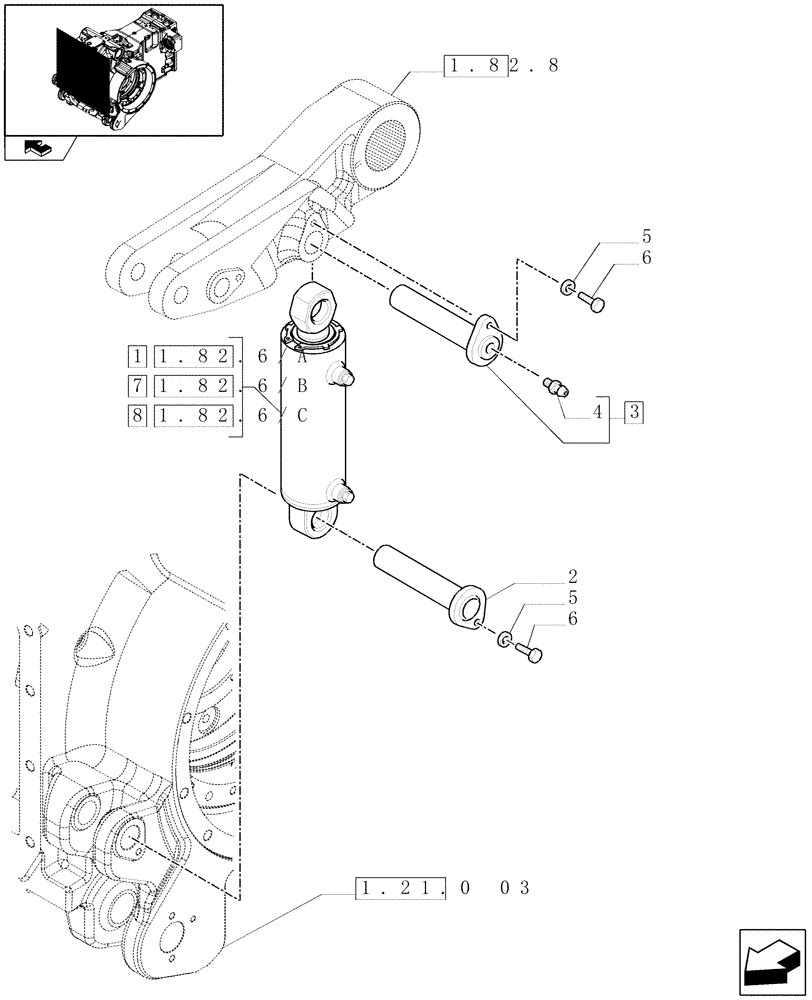

Схема запчастей Case IH PUMA 195 - (1.82.6) - HYDRAULIC POWER LIFT - CYLINDER AND PINS (07) - HYDRAULIC SYSTEM
home
1.82.6/c
1.82.6/b
1.21.0 03
1.82.8
1.82.6/a
6
5
4
7
6
1
5
2
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47136721

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 200mm Stroke

ASSY

2шт.

2 x 90mm Rams, Lift Capacity 5800 KG

1шт.

2

5185964

PIN,34.7mm OD x 132mm L

M15.54 x 2.62

2шт.

3

5186171

PIN

ASSY

2шт.

4

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1шт.

5

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

4шт.

7

47130987

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 228mm Stroke

2шт.

With 2 x 100mm Rams, Lift Capacity 7200 KG, VAR.232

1шт.

8

87521075

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 200mm Stroke

2шт.

With 2 x 110mm Rams, Lift Capacity 8700 KG, VAR.047

1шт.
