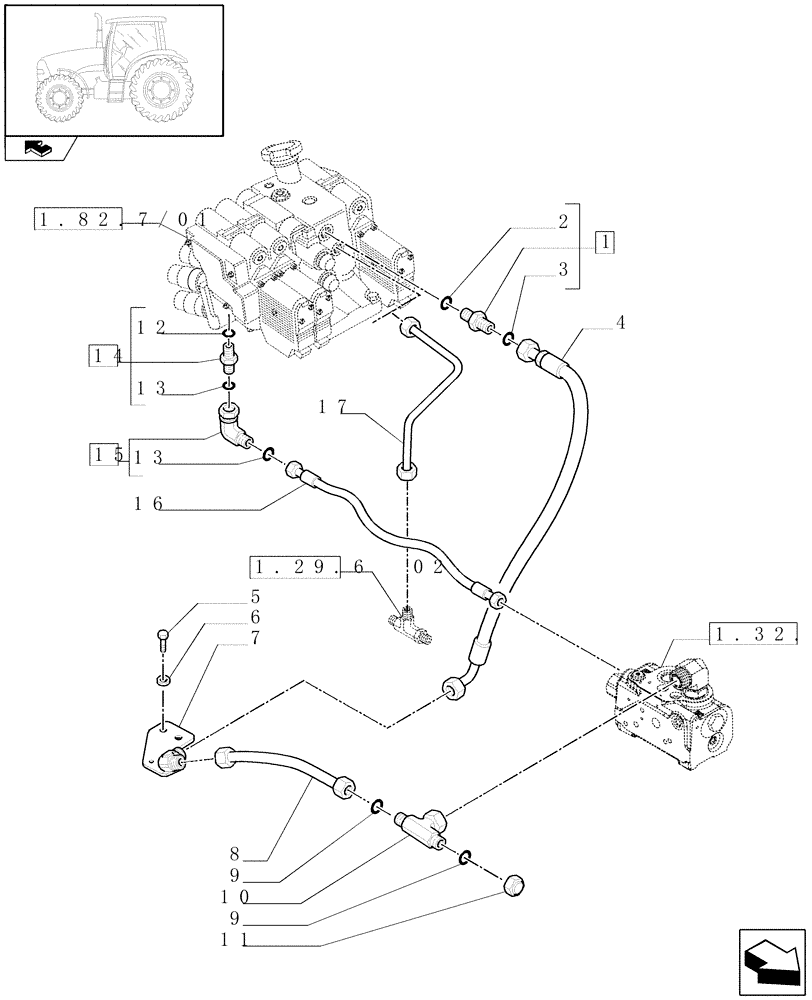

Запчасти Case IH PUMA 195 (1.82.1/01[02]) - LIFTER LINES - REMOTE CONTROL VALVES MAIN SUPPLY AND LOAD SENSE LINE (07) - HYDRAULIC SYSTEM

1

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

M27 x 2;1-3/16"-12

1шт.

2

14438185

O-RING,24mm ID x 3mm

1шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

4

87316346

HYDRAULIC HOSE,19mm ID x 693mm L

From Priority Valve to Remote Valves

1шт.

5

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

6

12642405

WASHER,M10 x 20 x 1

2шт.

7

87318333

BRACKET

1шт.

8

87316329

HYD TUBE

From Priority Valve to Remote Valves

1шт.

9

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

10

87328818

TEE

1шт.

11

5189904

PLUG

1шт.

12

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

13

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

14

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

Load Sensing, M10x1;9/16"-18

1шт.

15

82020198

ELBOW

9/16"-18 (2x)

1шт.

16

84120066

HOSE

Load Sensing, from Priority Valve to Remote Valves

1шт.

17

87370311

HYD TUBE

1шт.
