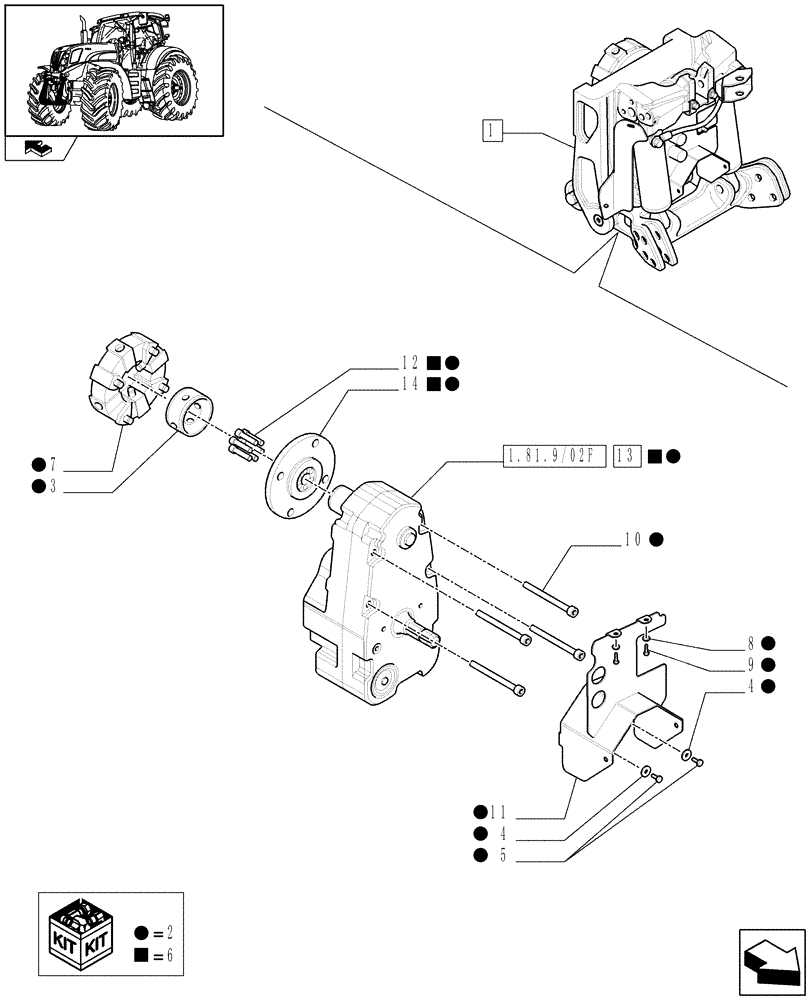

Запчасти Case IH PUMA 195 (1.81.9/04B[02]) - FRONT HPL WITH PTO WITH AUX. COUPLERS - BREAKDOWN (07) - HYDRAULIC SYSTEM

1

NSS

NOT SOLD SEPARAT

1шт.

2

84123842

FRONT PTO ASSY

1шт.

3

87665840

HUB

1шт.

4

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

5

87663694

SELF-TAP SCREW

M8 x 16

2шт.

6

87476104

GEARBOX

1шт.

7

87665870

COUPLING

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

9

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

10

87664189

HEX SOC SCREW,M14 x 140mm, Cl 8.8

M14 x 140

4шт.

11

87663691

COVER ASSY

1шт.

12

14422374

HEX SOC SCREW,M12 x 1.75 x 45mm, Cl 12.9, Full Thd

6шт.

13

87745486

GEARBOX

1шт.

14

87662107

FLANGE

1шт.
