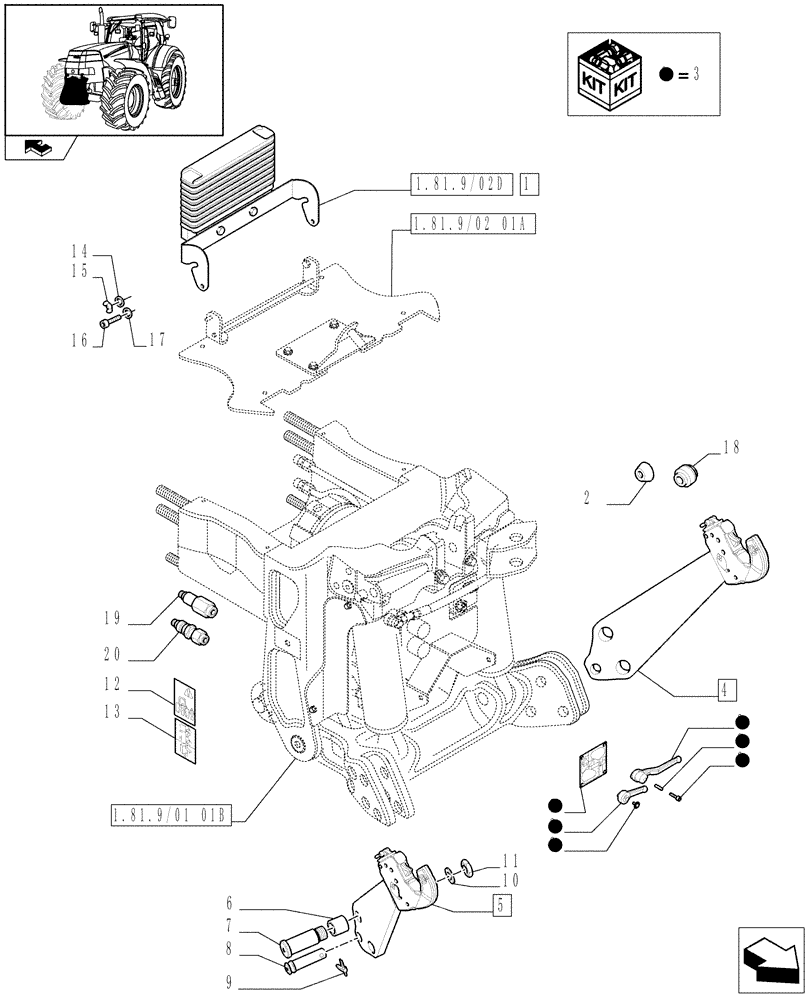

Запчасти Case IH PUMA 195 (1.81.9/04[02A]) - (VAR.091) FRONT HPL WITH PTO, WITH AUX. COUPLERS - LINK AND ARMS - D6726 (07) - HYDRAULIC SYSTEM

1

84177631

OIL COOLER

ASSY

1шт.

2

44017819

BUSHING,28.7mm ID x 64mm OD x 44.7mm L

2шт.

3

87609320

REPAIR KIT

KIT

1шт.

4

87399996

LIFT ARM

LH, Incl. 20

1шт.

5

87399998

LIFT ARM

RH, Incl. 20

1шт.

6

84123863

BUSHING

2шт.

7

87609324

PIN

2шт.

8

87515204

PIN

2шт.

9

87515201

LINCH PIN

2шт.

10

87515200

WASHER,31mm ID x 50mm OD x 2mm Thk

2шт.

11

87515202

NUT

M30 x 1.5

2шт.

12

87607322

DECAL

1шт.

13

87607323

DECAL

1шт.

14

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

18

5172480

BALL,25.4mm ID x 50mm OD

1шт.

15

87662219

WING NUT

2шт.

16

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

17

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

19

87608926

PUSH-PULL COUPLING

1шт.

20

87608924

PUSH-PULL COUPLING

1шт.
