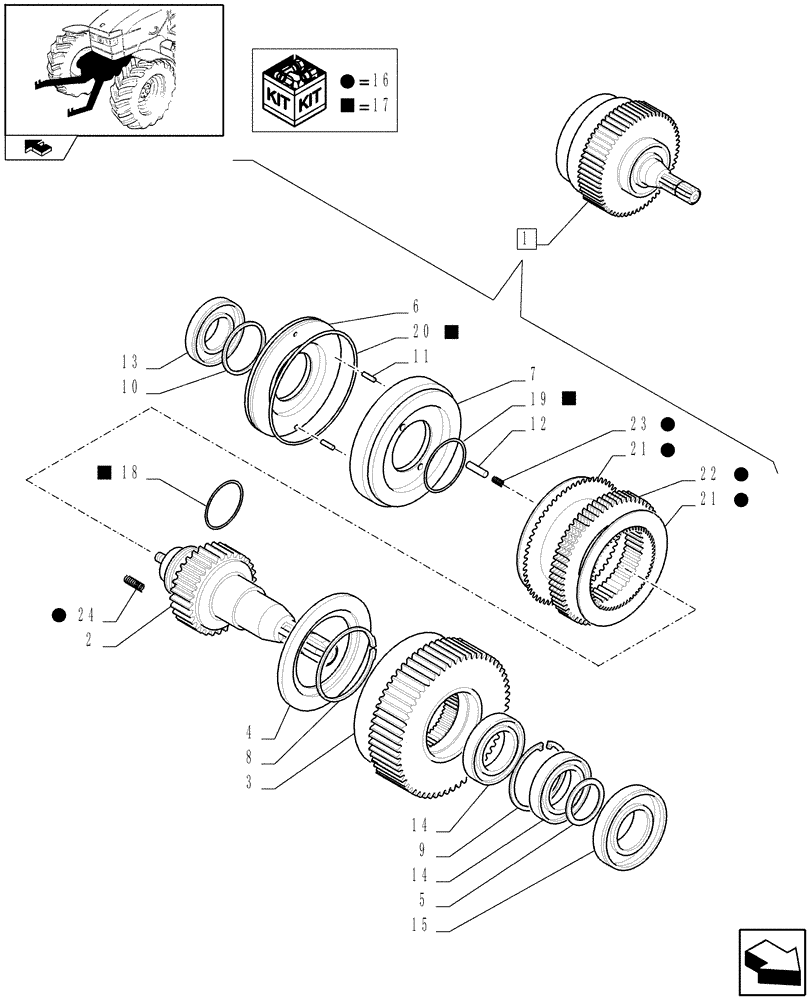

Запчасти Case IH PUMA 195 (1.81.9/02B) - CLUTCH - BREAKDOWN (07) - HYDRAULIC SYSTEM

1

87712183

CLUTCH

Contains Ref. 2-24

1шт.

2

87734861

PTO SHAFT

1шт.

3

87735059

PTO CLUTCH

1шт.

4

87735083

BACK-UP RING

1шт.

5

87736025

SPACER

1шт.

6

87736026

PISTON

1шт.

7

87736036

THRUST PLATE

1шт.

8

370010

SNAP RING,M100, External

1шт.

9

300640

SNAP RING,M95, Ext

1шт.

10

11070276

SNAP RING,M68, Ext

1шт.

11

87736478

DOWEL,6mm OD x 24mm L

6 x 24

2шт.

12

837-10032

DOWEL,10mm OD x 32mm L

10 x 32

2шт.

13

87736482

BALL BEARING

1шт.

14

87736483

BALL BEARING

2шт.

15

87736484

BALL BEARING

1шт.

16

87739970

CLUTCH OVERHAUL KIT

1шт.

17

87739690

SEAL KIT

1шт.

18

87736456

O-RING,2mm Thk x 65mm ID

1шт.

19

87736458

O-RING,3mm Thk x 70mm ID

1шт.

20

87736459

O-RING,4mm Thk x 155mm ID

1шт.

21

87736042

CLUTCH PLATE

9шт.

22

87736460

CLUTCH DRIVING PLATE

8шт.

23

87736044

COMPRESSION SPRING

2шт.

24

87736039

COMPRESSION SPRING

8шт.
