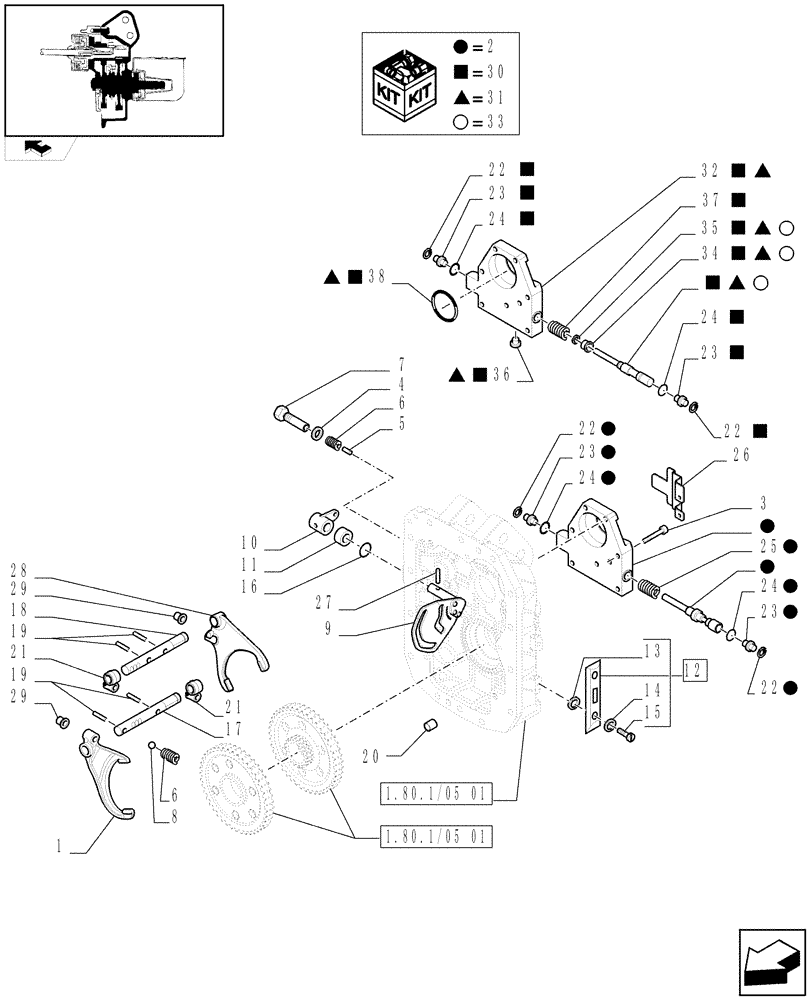

Запчасти Case IH PUMA 195 (1.80.1/05[05]) - (VAR.349-374) 4 SPEED SHIFTABLE PTO ELECTRIC CONTROL 540/540E/1000/1000E - SHAFT AND GEARS - D6479 (07) - HYDRAULIC SYSTEM

1

84197203

FORK

1шт.

2

84240800

MANIFOLD

, Serial Range: -C6757

1шт.

3

14306824

HEX SOC SCREW,M8 x 1.25 x 45mm, Cl 8.8, Full Thd

M8 x 45

2шт.

3

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

M8 x 25

4шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

5

5159011

PIN,10mm OD x 20mm Thk

1шт.

6

4994342

SPRING,8mm OD x 30mm OAL

3шт.

7

5182673

CASE

1шт.

8

20063390

BALL,8.73mm OD

1шт.

9

84206588

SELECTOR

1шт.

10

84254450

CONTROL LEVER

1шт.

11

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

12

87356021

LEVEL GAUGE

Incl. 13, 14, 15

1шт.

13

87349969

RUBBER SEAL

2шт.

14

47130060

O-RING

2шт.

15

47130059

SCREW,Pan HD, M12 x 41mm

2шт.

16

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

1шт.

17

84253169

ROD,16mm OD x 179mm L

L=179MM

1шт.

18

84253170

ROD

L=154MM

1шт.

19

13901370

6 x 30MM

4шт.

20

44908048

BUSHING,16mm OD x 14mm L

2шт.

21

84202048

DRIVE DOG

2шт.

22

47127897

SNAP RING,M21.5, Ext

2шт.

23

47128597

PLUG,6mm ID x 19mm OD x 13mm L

2шт.

24

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

2шт.

25

47123788

SPRING,15mm OD x 87.5mm L

, Serial Range: -C6757

1шт.

26

84209913

GUARD

1шт.

27

86548577

PIN,8mm OD x 40mm L, Slotted

1шт.

28

84197202

FORK

1шт.

29

87580517

BUSHING,10mm ID x 21mm OD x 9.6mm L

2шт.

30

84296184

MANIFOLD

, Start Serial: D6757

1шт.

31

84296183

MANIFOLD

, Start Serial: D6757

1шт.

32

84240136

SUPPORT

, Start Serial: D6757

1шт.

33

84271075

VALVE

, Start Serial: D6757

1шт.

34

84271074

SPACER,8mm ID x 15.6mm OD x 10mm L

, Start Serial: D6757

1шт.

35

13397370

SNAP RING,M8, Int

, Start Serial: D6757

1шт.

36

14536590

PLUG,10.00mm Dia x 19.80mm L

, Start Serial: D6757

2шт.

37

84281722

SPRING,Compression, 15mm OD x 80mm L

, Start Serial: D6757

1шт.

38

14460880

O-RING,0.103" Thk x 2.862" ID, -150, Cl 5, 75 Duro

, Start Serial: D6757

1шт.
