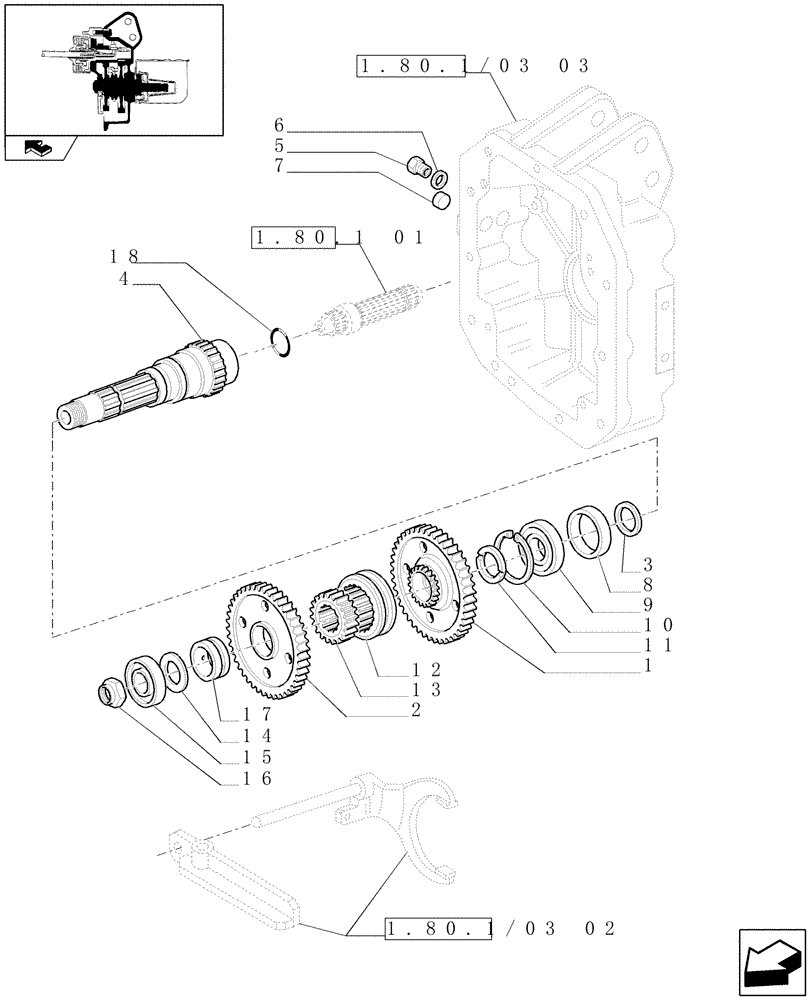

Запчасти Case IH PUMA 195 (1.80.1/03[01]) - (VAR.335) PTO 540E/1000 RPM WITH INTERCHANGABLE SHAFTS - SHAFT AND GEARS (07) - HYDRAULIC SYSTEM

1

87592699

DRIVING GEAR

750 RPM

1шт.

2

87605013

GEAR

1000 RPM, 53 Teeth

1шт.

3

47131852

RETAINER,70.5mm ID x 86mm OD x 4mm Thk

1шт.

4

47131841

SHAFT

1шт.

5

10300814

PLUG,HEX, M18 x 1.5

M8 x 1.5

1шт.

6

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

7

14328701

PLUG,M20, Tapered

1шт.

8

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

80 x 100 x 10

1шт.

9

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

70 x 125 x 24

1шт.

10

11076176

SNAP RING,M125, Int

1шт.

11

47132124

CIRCLIP,M70

D=70

1шт.

12

87578126

SLEEVE,Z12

1шт.

13

87578128

GEAR,21T Internal / 33T External

1шт.

14

5182629

ANTI-WRAP PLATE

45.1 x 70 x 8

1шт.

15

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

1шт.

16

5123114

RING NUT,Hex, M36 x 1.5

M36 x 1.5

1шт.

17

5151437

BUSHING,44.4mm ID x 55mm OD x 35mm L

1шт.

18

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

1шт.
