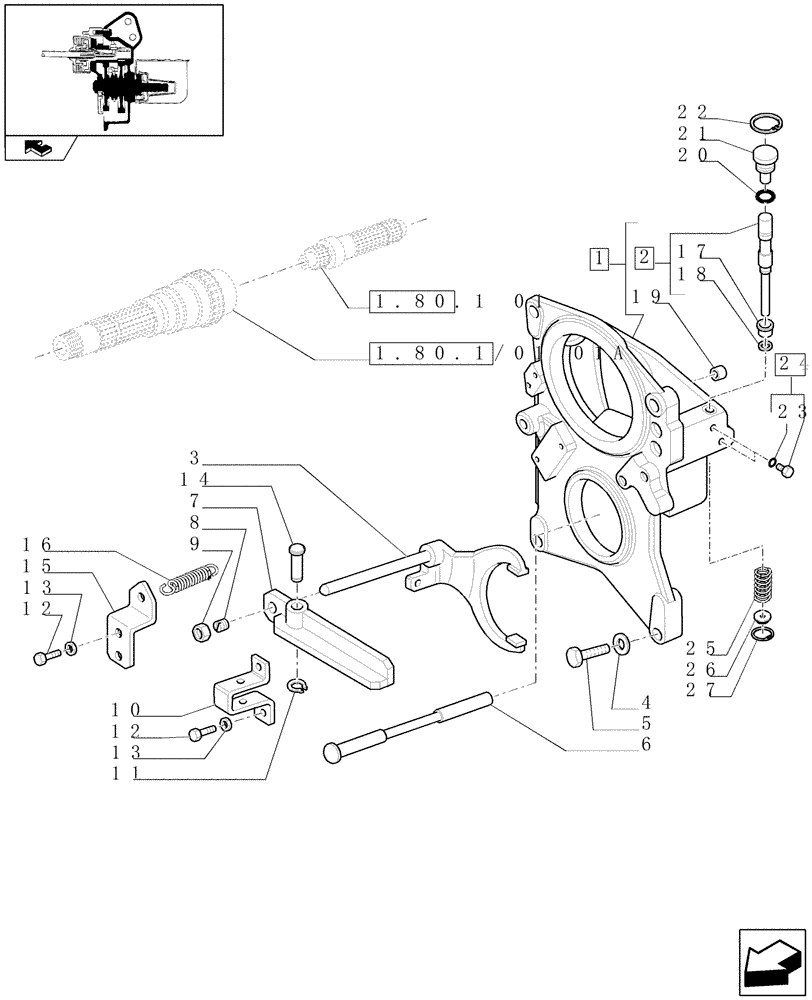

Запчасти Case IH PUMA 195 (1.80.1/01[02A]) - (VAR.809) PTO 540/1000 RPM WITH INTERCHANGABLE SHAFTS - SUPPORT AND ENGAGEMENT - D6518 (07) - HYDRAULIC SYSTEM

1

87592707

SUPPORT

, Serial Range: -C6757

1шт.

1

84295659

SUPPORT

, Start Serial: D6757

1шт.

2

47128616

VALVE

Icl. 17-18, Serial Range: -C6757

1шт.

2

84271075

VALVE

, Start Serial: D6757

1шт.

3

87600402

YOKE

1шт.

4

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

5

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

6

87602927

PIN,10mm OD x 209mm L

1шт.

7

5171261

LEVER

1шт.

8

5171363

PIN

1шт.

9

16103614

THIN NUT,Thin, M12, 1.25 Pitch, Cl 04

1шт.

10

5179750

SUPPORT

1шт.

11

11065976

CIRCLIP,M10, Ext

1шт.

12

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

4шт.

13

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

14

5179749

PIN,9.6mm OD x 43.5mm L

1шт.

15

87345949

SUPPORT

1шт.

16

4983677

SPRING

1шт.

17

47128538

SPACER

, Serial Range: -C6757

1шт.

17

84271074

SPACER,8mm ID x 15.6mm OD x 10mm L

, Start Serial: D6757

1шт.

18

13397370

SNAP RING,M8, Int

1шт.

19

47127805

BUSHING,12mm ID x 14mm OD x 15mm L

1шт.

20

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

21

5196030

PIN,20mm OD x 16.5mm L

1шт.

22

47127897

SNAP RING,M21.5, Ext

1шт.

23

14437585

O-RING,8.00mm ID x 1.50mm

2шт.

24

10118540

PLUG,M10 x 1 x 11, Brass

2шт.

25

47123788

SPRING,15mm OD x 87.5mm L

, Serial Range: -C6757

1шт.

25

84281722

SPRING,Compression, 15mm OD x 80mm L

, Start Serial: D6757

1шт.

26

47127951

CAP COVER

1шт.

27

13420576

SNAP RING,M16, Int

1шт.
