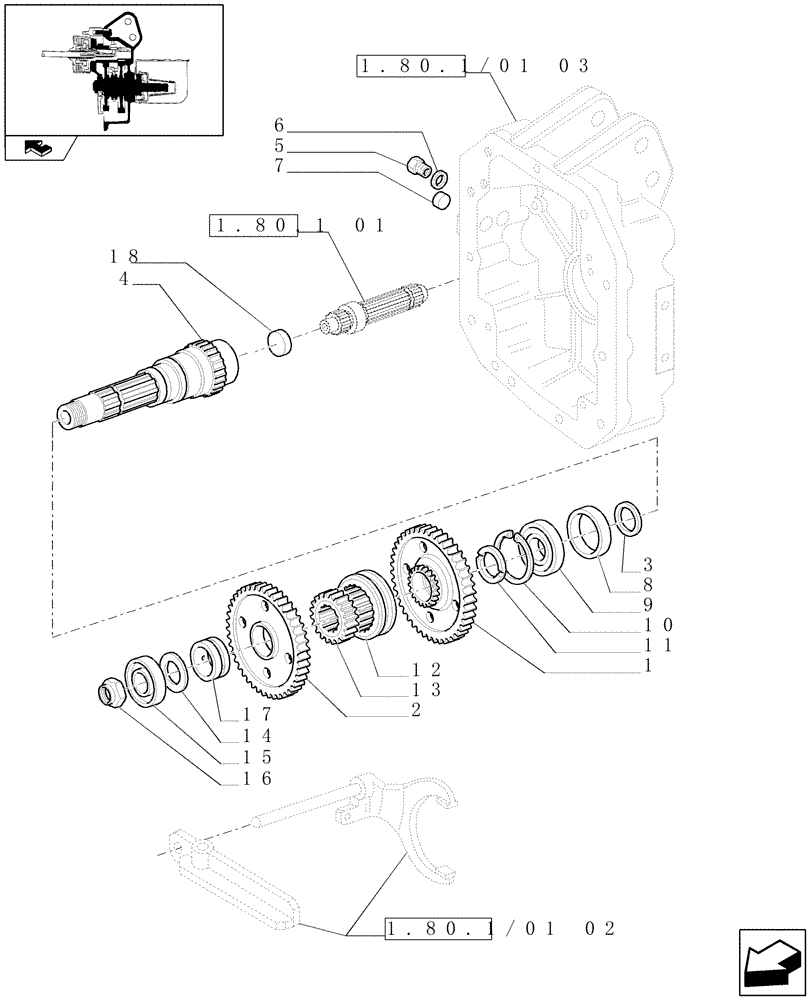

Запчасти Case IH PUMA 195 (1.80.1/01[01]) - (VAR.809) PTO 540/1000 RPM WITH INTERCHANGABLE SHAFTS - SHAFT AND GEARS - C6518 (07) - HYDRAULIC SYSTEM

1

5196857

GEAR

540 RPM

1шт.

2

5182636

DRIVING GEAR

56 Teeth

1шт.

3

47131852

RETAINER,70.5mm ID x 86mm OD x 4mm Thk

1шт.

4

47131841

SHAFT

1шт.

5

10300814

PLUG,HEX, M18 x 1.5

M8 x 1.5

1шт.

6

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

7

14328701

PLUG,M20, Tapered

1шт.

8

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

80 x 100 x 10

1шт.

9

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

70 x 125 x 24

1шт.

10

11076176

SNAP RING,M125, Int

1шт.

11

47132124

CIRCLIP,M70

D=70

1шт.

12

5145798

SYNCHRONIZER,24T

1шт.

13

5145826

DRIVE BUSHING

1шт.

14

5182629

ANTI-WRAP PLATE

45.1 x 70 x 8

1шт.

15

5182627

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

1шт.

16

5123114

RING NUT,Hex, M36 x 1.5

M36 x 1.5

1шт.

17

5151437

BUSHING,44.4mm ID x 55mm OD x 35mm L

1шт.

18

5179204

PLUG,20.27mm OD x 6.38mm W

1шт.
