(1.80.1[02A]) - POWER TAKE-OFF 540E/1000 RPM - GEARS - D6764

Запчасти Case IH PUMA 195 (1.80.1[02A]) - POWER TAKE-OFF 540E/1000 RPM - GEARS - D6764 (07) - HYDRAULIC SYSTEM

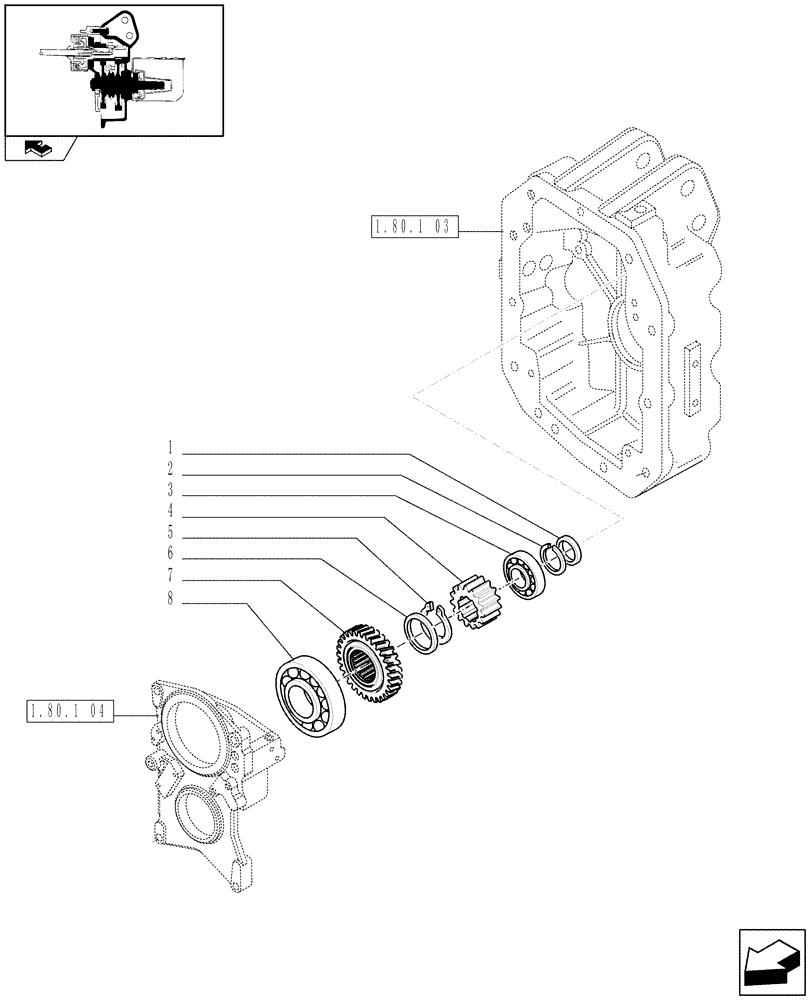

Схема запчастей Case IH PUMA 195 - (1.80.1[02A]) - POWER TAKE-OFF 540E/1000 RPM - GEARS - D6764 (07) - HYDRAULIC SYSTEM
home
1.80.1 04
1.80.1 03
5
2
4
3
8
6
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

35.1 x 43 x 2

1шт.

2

5154307

SNAP RING,M35

1шт.

3

5182641

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 21mm W

1шт.

4

87576360

GEAR

Driving

1шт.

5

5138419

SNAP RING,M50

D=50

1шт.

6

5151457

THRUST WASHER,50.1mm ID x 62mm OD x 2mm Thk

1шт.

7

87548135

DRIVING GEAR

Driving, 1000 RPM

1шт.

8

87707493

BEARING ASSY,75mm ID x 130mm OD x 25mm W

75 x 130 x 25

1шт.
