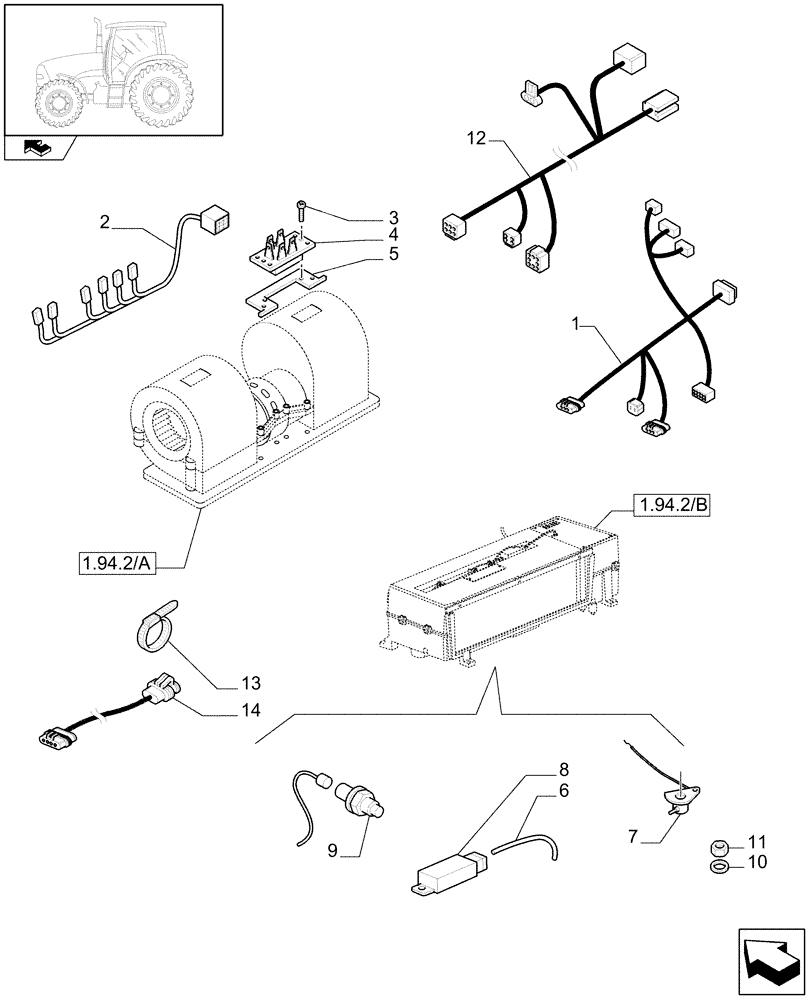

Запчасти Case IH PUMA 195 (1.75.4[08]) - AIR CONDITIONING CABLES AND RELATED PARTS (06) - ELECTRICAL SYSTEMS

1

84137924

WIRE HARNESS

Main A/C, Serial Range: -C6381

1шт.

2

82023565

WIRE HARNESS

Blower Module

1шт.

3

15903804

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13mm

2шт.

4

82033103

RESISTOR

1шт.

5

82033104

PLATE

1шт.

6

87748722

WIRE HARNESS

1шт.

7

82027897

BOWDEN CONTROL,1796.5mm L

Incl. 10, 11; Water Valve

1шт.

8

87377466

THERMOSTAT

1шт.

9

82036401

PRESSURE SWITCH

1шт.

10

9715503

LOCK WASHER,Ext Tooth, 7/16"

1шт.

11

274562

THIN NUT

1шт.

12

84194119

WIRE HARNESS

, Start Serial: D6381

1шт.

13

82012869

CABLE TIE,300mm L, Nylon, Black

5шт.

14

84538374

WIRE HARNESS

1шт.
