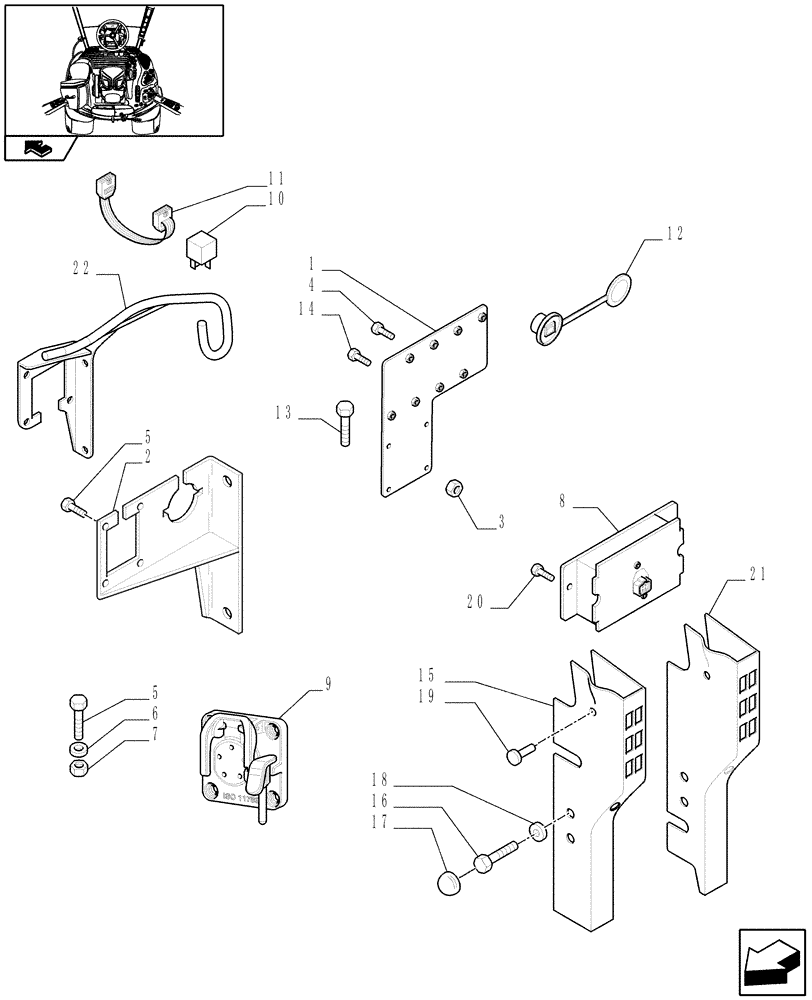

Запчасти Case IH PUMA 195 (1.75.1/11) - (VAR.012-131/1) VIRTUAL TERMINAL MOUNTED ON IMPLEMENT BRACKET - ISO BUS MOUNTING (06) - ELECTRICAL SYSTEMS

1

87594470

SUPPORT

1шт.

2

84167089

SUPPORT

, Serial Range: -C7019

1шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

4шт.

4

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

4шт.

5

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

8шт.

6

10571579

LOCK WASHER,M6

5шт.

7

15896211

NUT,M6, Cl 8

5шт.

8

82038683

ELEC. TERMINAL PIN

ELEC CONNECTOR

1шт.

9

87522416

ELEC CONNECTOR,Female, 5 Cavities

Isobus Breakaway

1шт.

10

82017871

RELAY,12V, 20A

2шт.

11

87638191

WIRE HARNESS

Link Lead

1шт.

12

87316200

ELEC CONNECTOR

1шт.

With VAR.131/1

1шт.

13

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

14

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

M5 x 20

4шт.

15

87479488

PADDING

, Serial Range: -C6514

1шт.

16

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

17

82012814

CAP,M10

2шт.

18

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

19

83998841

STUD,7.85mm OD x 19.50mm L

3шт.

20

15645501

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 16mm

2шт.

21

84285943

PADDING

, Start Serial: D6514

1шт.

22

84384570

SUPPORT

, Start Serial: D7019

1шт.
