Запчасти Case IH PUMA 195 (1.75.0[03]) - GEARBOX HOUSING SENSORS AND SWITCHES (06) - ELECTRICAL SYSTEMS

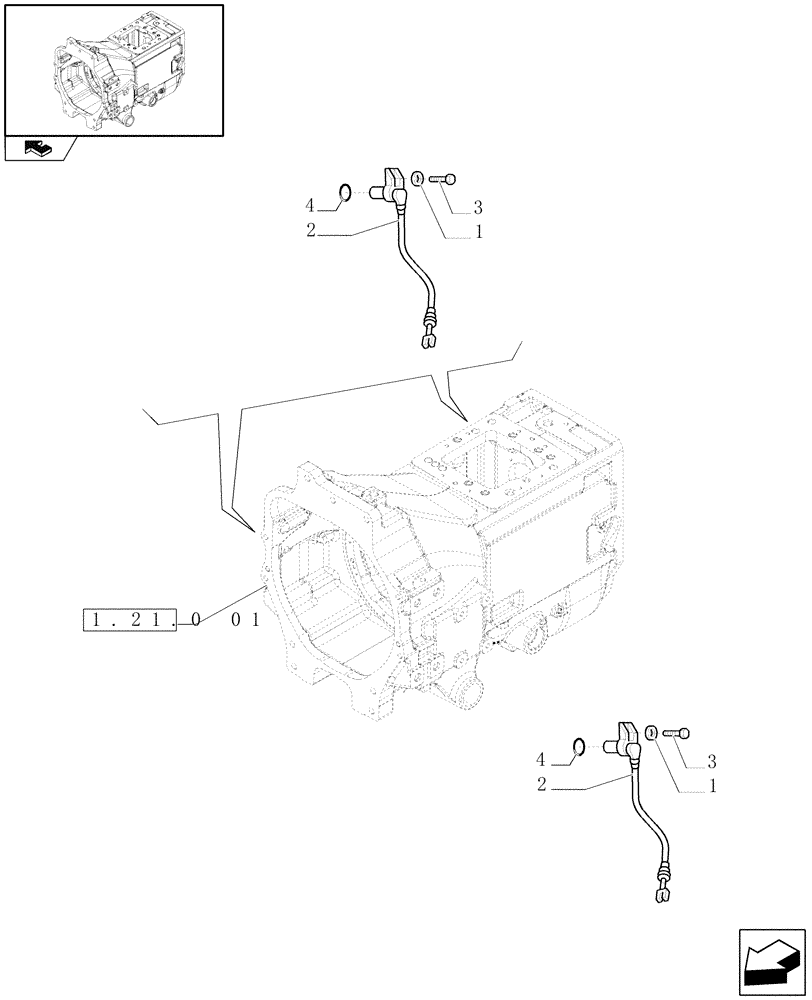

Схема запчастей Case IH PUMA 195 - (1.75.0[03]) - GEARBOX HOUSING SENSORS AND SWITCHES (06) - ELECTRICAL SYSTEMS
3
2
1
home
1.21.0 01
3
4
1
2
4

Артикул

Название

Примечание

Количество

1

10615476

LOCK WASHER,Ext Tooth, M6

3шт.

2

84169162

SENSOR

3шт.

Output RPM (LH Side, Rear), Mid Speed (RH Side, Rear) & Flywheel (RH Side, Front)

1шт.

Speed, Hall Effect, High Sensibility

1шт.

3

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

3шт.

4

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

3шт.

Выбрано товаров: 6
