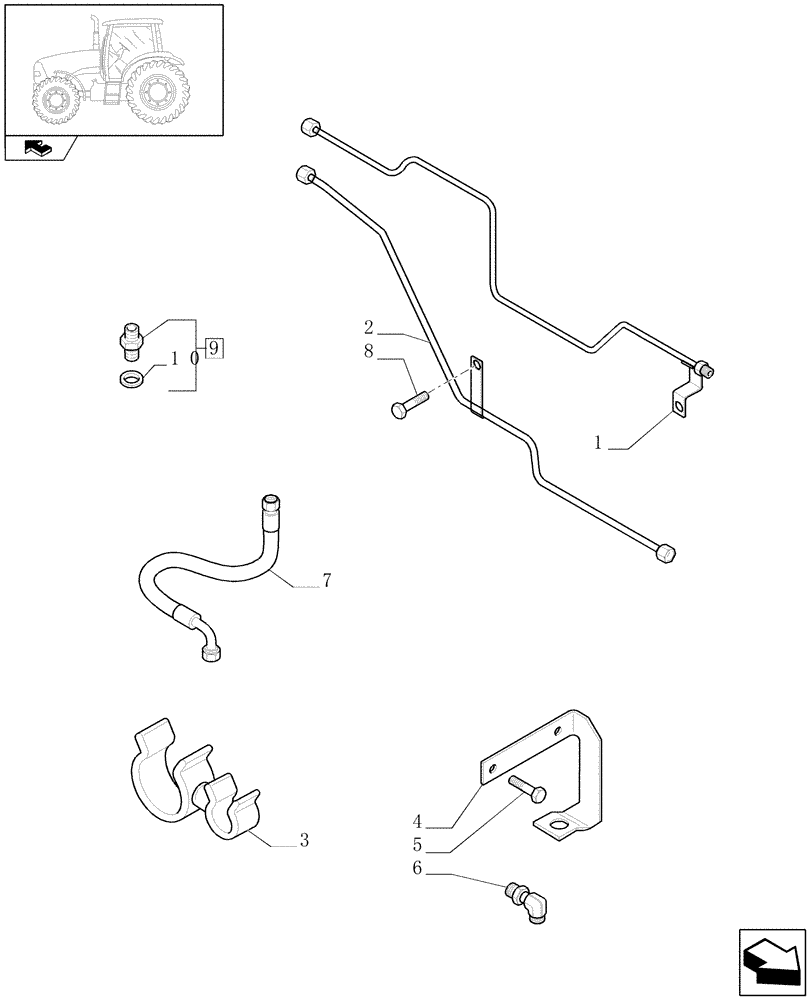

Запчасти Case IH PUMA 195 (1.42.0/02) - (VAR.195-212) FRONT AXLE WITH BRAKES - BRAKE CONTROL (04) - FRONT AXLE & STEERING

1

87392380

HYD TUBE,6 mm ID x 8 mm OD x 847, 355 mm L

11/16 - 16

1шт.

2

87392378

TUBE,6 mm ID x 10 mm OD x 651, 268 mm L

11/16 - 16

1шт.

3

87393621

CLIP

1шт.

4

87392393

SUPPORT

, Serial Range: -C7182

1шт.

4

84606637

BRACKET

, Start Serial: D7182

1шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

87326942

HYD CONNECTOR

11/16 - 16

1шт.

7

87318011

HOSE

11/16 - 16, 1/2 - 20, MM 590

1шт.

8

82025437

BOLT,Hex, M14 x 2 x 25mm, Cl 8.8

1шт.

9

82015298

HYD CONNECTOR,1/2"-20 - M18 x 1.5

1шт.

10

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.
