(1.42.0[02]) - POWER STEERING DELIVERY AND RETURNS PIPES

Запчасти Case IH PUMA 195 (1.42.0[02]) - POWER STEERING DELIVERY AND RETURNS PIPES (04) - FRONT AXLE & STEERING

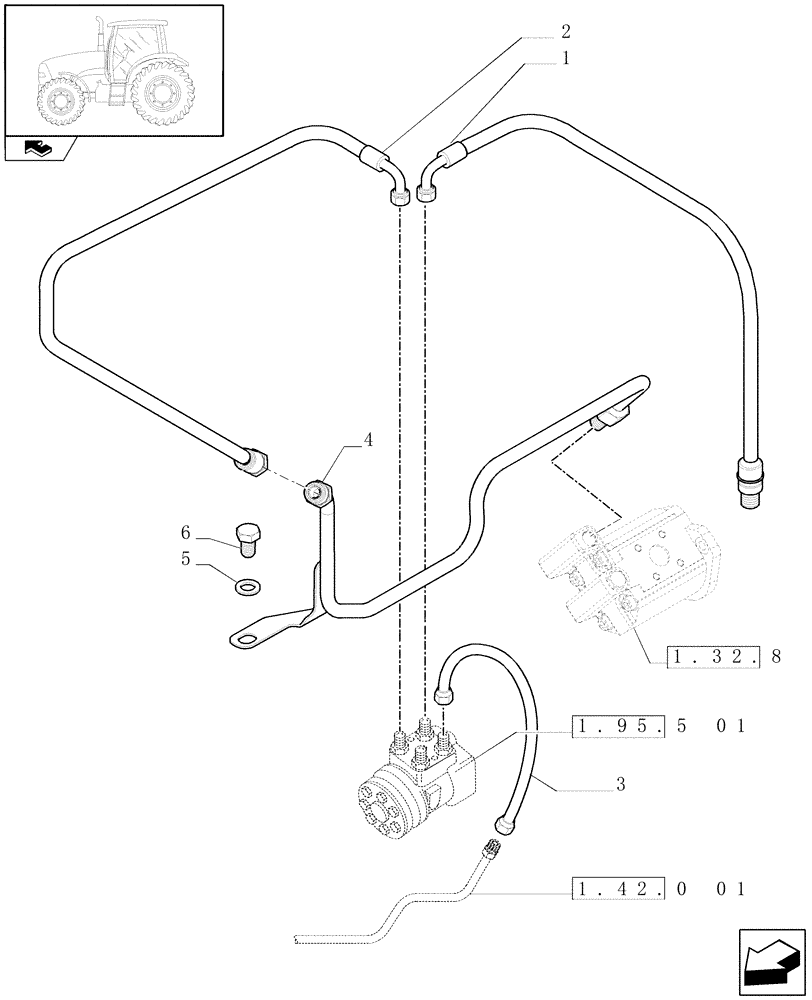

Схема запчастей Case IH PUMA 195 - (1.42.0[02]) - POWER STEERING DELIVERY AND RETURNS PIPES (04) - FRONT AXLE & STEERING
3
1.42.0 01
1.32.8 04
4
2
6
1
5
home
1.95.5 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87367555

HOSE ASSY.,12.7mm ID x 570mm L, SAE 100R2

Power Steering Return

1шт.

2

84402486

HOSE,12.7mm ID x 540mm L, SAE 100R16

Feed

1шт.

3

82037164

HOSE,9.53mm ID x 685mm L, SAE 100R2

2шт.

4

87316315

HYD TUBE

1шт.

5

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

Load Sense

1шт.

6

374888

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

1шт.
