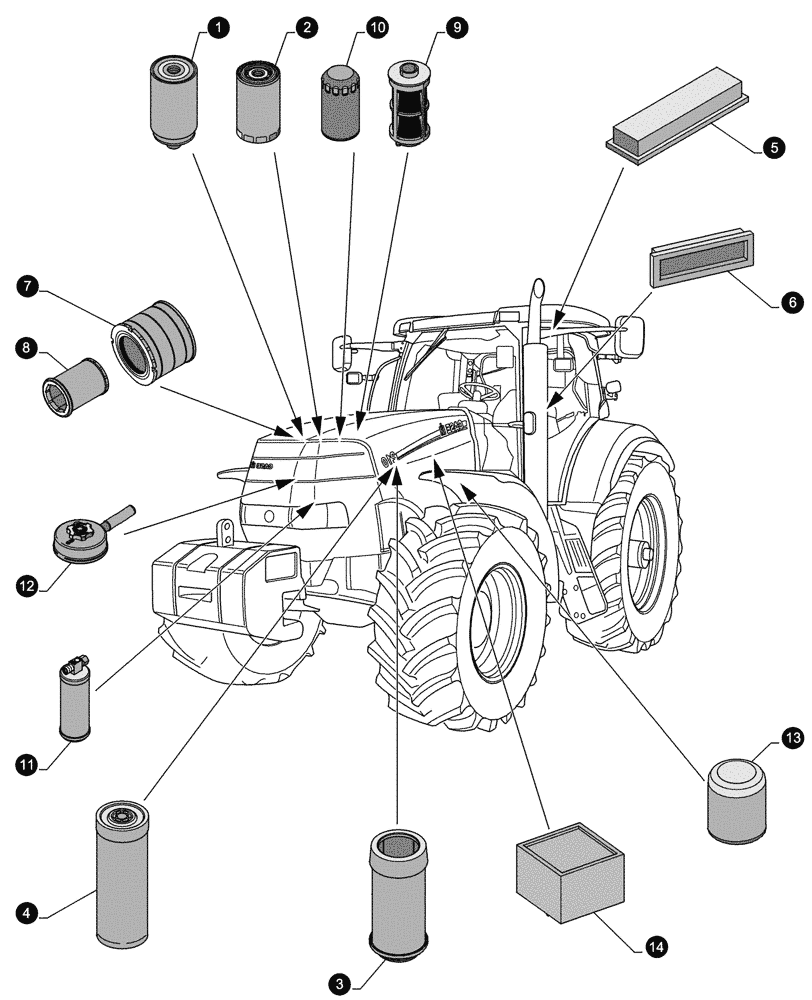

Запчасти Case IH PUMA 195 (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL

1

84170818

FUEL FILTER,96.2mm OD x 183mm L, M16 x 1.5 - 6H, W/ WIF Sensor (M10)

Primary, w/Water Separator, w/Sensor M10, Every 600 hours

1шт.

Valid with STD

1шт.

C6577 Engine S/N 710158

1шт.

1

84278636

FUEL FILTER,96.2mm OD x 183mm L, M16x1.5 - 6H, W/ WIF Sensor (M14)

Primary, w/Water Separator, w/Sensor M14, Every 600 hours

1шт.

Valid with STD

1шт.

D6577 Engine S/N 710159

1шт.

2

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Primary, Spin-On, Every 600 hours

1шт.

Valid with STD

1шт.

3

47617638

FILTER

Transmission/Pump, Every 600 hours

1шт.

Valid with "Hi-Flow" PFC Pump w/EDC (150 l/min), Var.004 and Var.481

1шт.

D6356 After Date 30 January 2009

1шт.

4

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

Transmission/Pump, Every 600 hours

1шт.

Valid with "Hi-Flow" PFC Pump w/EDC (150 l/min), Var.004 and Var.481

1шт.

D6603 After Date 21 October 2009

1шт.

5

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Heating, Conditioning, w/High Profile Roof, Every 1200 hours or annually

2шт.

Valid with STD

1шт.

D6481 After Date 18 June 2009

1шт.

6

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Inner Thick Cartridge, Recirculation, Every 1200 hours or annually

1шт.

7

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Primary Cartridge, Every 1200 hours or every 2 years

1шт.

8

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Secondary Cartridge, Every 1200 hours or every 2 years

1шт.

9

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Pre-Cleaner, Every 600 hours

1шт.

10

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Primary, w/Water Separator, Every 600 hours

1шт.

Valid with STD

1шт.

11

47446235

RECEIVER-DRYER

A/C Condenser

1шт.

12

87304662

BREATHER

Oil Vapour Separator, Every 1800 hours or every 2 years

1шт.

13

87638772

CARTRIDGE,165mm L

Brake Fluid Tank

1шт.

14

336430A1

FUEL FILTER

30 Microns, Water Separator

1шт.

Valid with Heavy Duty Fuel Filter, Var.414

1шт.
