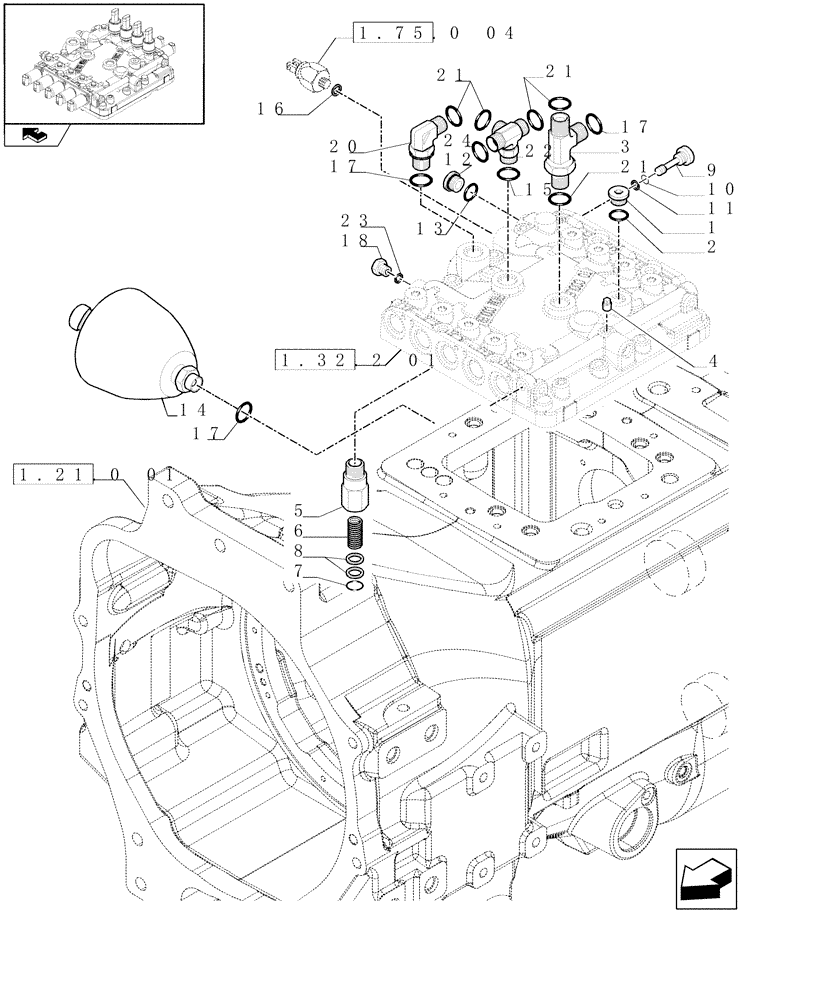

Запчасти Case IH PUMA 195 (1.32.2[02]) - TRANSMISSION TOP COVER CONTROL VALVE RELATED PARTS (03) - TRANSMISSION

1

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

2

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

3

5187064

TEE

17(q.ty1), 21(q.ty)

1шт.

4

14324011

PLUG,Taper Pipe, Sq Hd, M10 x 1 x 14mm, Cl 5.8

1шт.

5

5198572

VALVE

1шт.

6

5114402

SPRING,Compression, 11mm OD x 35.5mm L

1шт.

7

11057476

SNAP RING,M16, Int

1шт.

8

12644401

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

9

5194991

PLUG

1шт.

10

14453680

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

11

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

12

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

14

87314179

ACCUMULATOR,0.75L

1шт.

15

14438185

O-RING,24mm ID x 3mm

1шт.

16

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

18

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

19

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

1шт.

20

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

Incl. 17 (q.ty 1), 21 (q.ty 1)

1шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

22

87316458

HYD CONNECTOR

Incl.21 (q.ty 2), 24, 25

1шт.

23

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

24

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.
