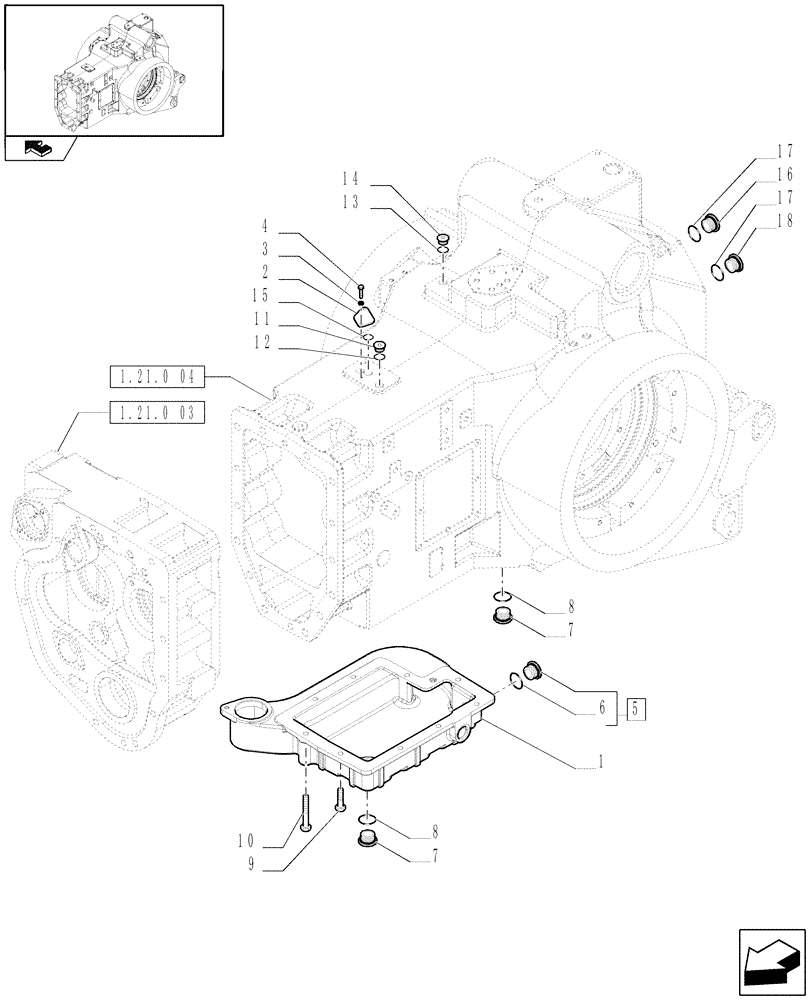

Запчасти Case IH PUMA 195 (1.21.0[05]) - CENTRAL HOUSING / TRANSMISSION BOX (03) - TRANSMISSION

1

87650210

COVER

1шт.

2

5196068

PLATE

1шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

4

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

5

5185747

PLUG,1"13/16-12

1шт.

6

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

7

10119511

PLUG,M33 x 2 x 16, Cl5.8

2шт.

8

14438285

O-RING,29.5mm ID x 3.0mm

2шт.

9

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

4шт.

10

15971424

BOLT,Hex, M10 x 1.25 x 80mm, Cl 8.8

5шт.

11

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

13

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

14

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

15

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

16

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

2шт.

17

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

18

5191505

PLUG

W/Equip. 819

2шт.
