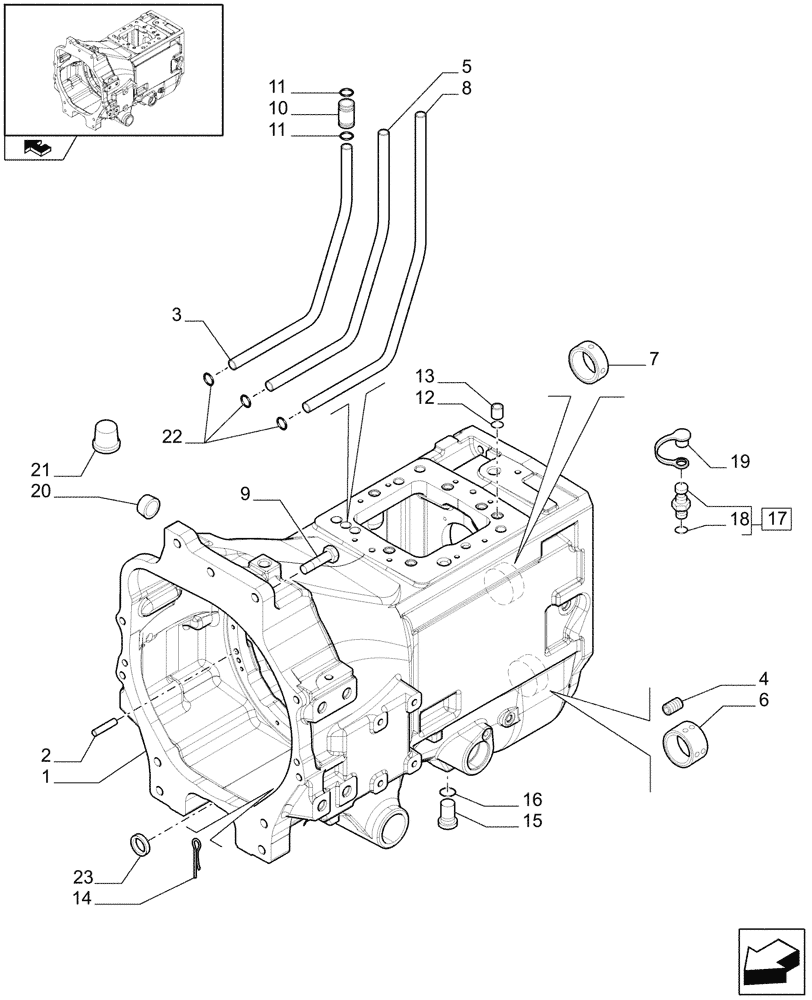

Запчасти Case IH PUMA 195 (1.21.0[01]) - CLUTCH BOX ASSY (03) - TRANSMISSION

1

87741867

TRANSMISSION HOUSING

1шт.

For PUMA 165, PUMA180, PUMA195 Models only

1шт.

1

87743325

TRANSMISSION HOUSING

1шт.

For PUMA 210 Model only

1шт.

2

5153109

DOWEL,10mm OD x 15mm L

2шт.

3

5186835

TUBE

For clutch D

1шт.

4

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

2шт.

5

5186834

TUBE

For clutch C

1шт.

6

5189017

BUSHING,90.02mm ID x 100.06mm OD x 52.5mm L

1шт.

7

5189016

BUSHING,90.02mm ID x 100.06mm OD x 28mm L

1шт.

8

5186836

TUBE

For clutch E

1шт.

9

15982134

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

9

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

2шт.

9

15982131

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

1шт.

9

11254134

SCREW,Hex, M16 x 1.5 x 80mm, Cl 10.9

4шт.

10

5198658

BUSHING

3шт.

11

5103230

O-RING,2.62mm Thk x 11.91mm ID

6шт.

12

14457281

O-RING,0.612" ID x 0.103" Width

6шт.

13

5178778

SPACER,11mm ID x 15mm OD x 15mm L

6шт.

14

10798204

COTTER PIN,M6.3 x 32

1шт.

15

5187246

PLUG

1шт.

16

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

17

5185423

COUPLING

4шт.

18

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

19

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

4шт.

20

82037172

PLUG

8шт.

21

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.

22

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3шт.

23

5139075

PLUG,80.5mm

2WD

1шт.

23

5125897

OIL SEAL,40mm ID x 80mm OD x 12mm Thk

4WD

1шт.
