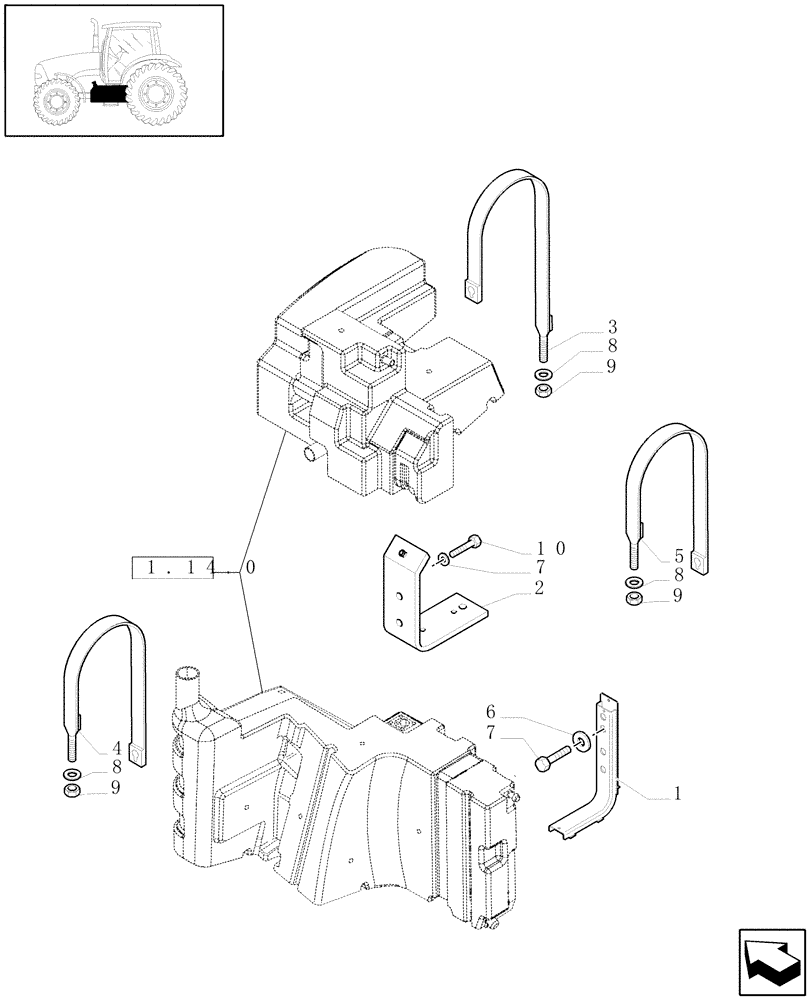

Запчасти Case IH PUMA 195 (1.14.7[01A]) - MAIN FUEL TANK SUPPORT - D6687 (02) - ENGINE EQUIPMENT

1

87519071

HOLDER

1шт.

2

87519056

HOLDER

1шт.

3

84259351

SECURING STRAP

L=380

2шт.

4

84259328

SECURING STRAP

L=650

1шт.

5

84259323

SECURING STRAP

L=897

2шт.

6

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

7

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

8

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

9

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

10

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.
