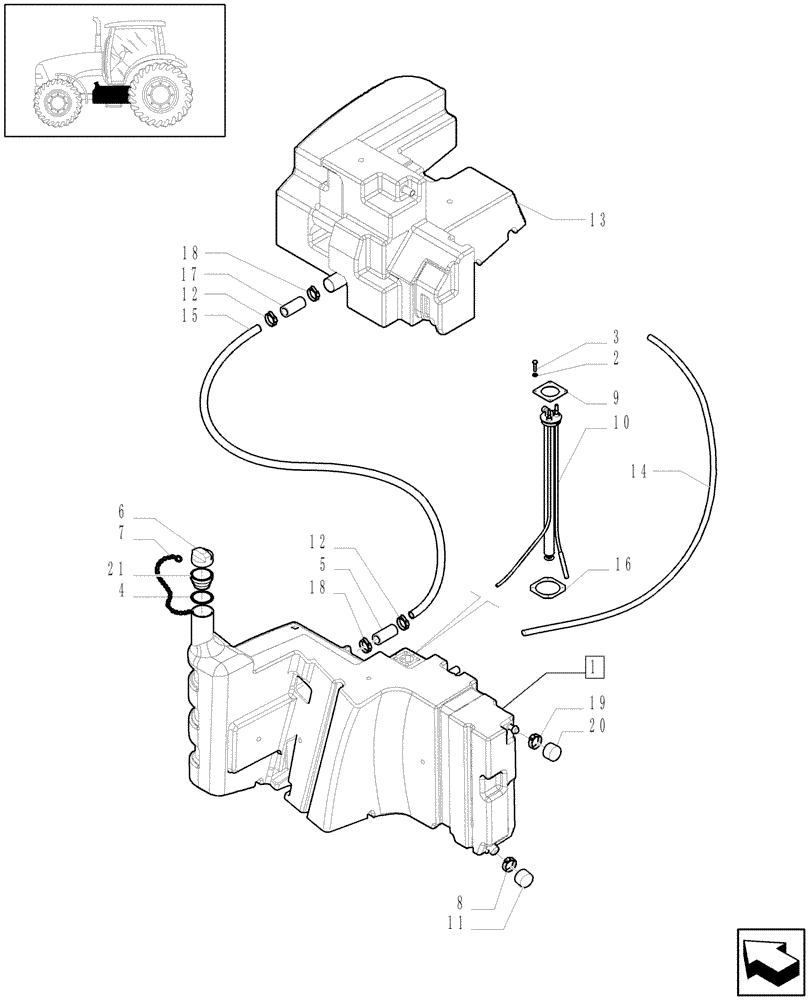

Запчасти Case IH PUMA 195 (1.14.0[01]) - FUEL TANK - C6851 (02) - ENGINE EQUIPMENT

1

84162105

FUEL TANK

Main, 300 lt

1шт.

2

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

6шт.

3

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

6шт.

4

87554849

O-RING,69mm ID x 4.5mm Width

1шт.

5

87387657

TUBE

1шт.

6

82012210

FILLER CAP

less locking cap

1шт.

6

82011472

LOCKABLE FUEL CAP

with locking cap

1шт.

7

87490453

LINK CHAIN

1шт.

8

82012726

HOSE CLAMP,38mm - 50mm, Worm Gear

1шт.

9

87341216

PLATE

1шт.

10

87580493

FUEL GAUGE

Float Assy

1шт.

11

83998666

CAP

1шт.

12

82039343

HOSE CLAMP,16mm - 27mm

2шт.

13

87327083

FUEL TANK

Aux, 110 lt, use 1 top strap 87327086

1шт.

14

82034051

FUEL HOSE,15.90 mm ID x 770.00 mm

Fuel breather line

1шт.

15

87312660

TUBE,38, 48 mm OD x 483, 100 mm L

Main to aux line

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

82008485

FUEL HOSE,48.00 mm ID x 80.00 mm, SAE J200

1шт.

18

82036462

CLAMP,50mm - 70mm

2шт.

19

82012719

CLAMP,15mm - 24mm, Worm Gear

1шт.

20

83952371

CAP,15mm ID X 25mm

1шт.

21

87554848

NECK FILLER

1шт.
